An engineer is trying to copy an IOS file from one router to another router by using TFTP Which two actions are needed to allow the file to copy? (Choose two.)

AConfigure the TFTP authentication on the source router with the tftp-server authentication local command.

BConfigure a user on the source router with the username tftp password tftp command.

CEnable the TFTP server on the source router with the tftp-server flash:<filename> command.

DTFTP is not supported in recent IOS versions, so an alternative method must be used.

ECopy the file to the destination router with the copy tftp: flash: command

1 answers

89 votes

1097

A, C

Answer Link

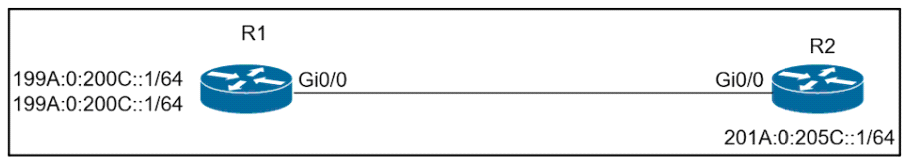

Refer to the exhibit.
Which configuration denies Telnet traffic to router 2 from 198A:0:200C::1/64?

AIpv6 access-list-Deny_Telnet sequence 10 deny tcp host 198A:0:200C::1/64 host
201A:0:205C::1/64 ! int Gi0/0
Ipv6 access-map Deny_Telnet in
!

BIpv6 access-list-Deny_Telnet sequence 10 deny tcp host 198A:0:200C::1/64 host
201A:0:205C::1/64 ! int Gi0/0
Ipv6 traffic-filter Deny_Telnet in
!

CIpv6 access-list-Deny_Telnet sequence 10 deny tcp host 198A:0:200C::1/64 host
201A:0:205C::1/64 eq telnet
! int Gi0/0
Ipv6 access-map Deny_Telnet in
!

DIpv6 access-list-Deny_Telnet sequence 10 deny tcp host 198A:0:200C::1/64 host
201A:0:205C::1/64 eq telnet
! int Gi0/0
6 / 39
Ipv6 traffic-filter Deny_Telnet in
!

1 answers

97 votes

1192

Answer Link

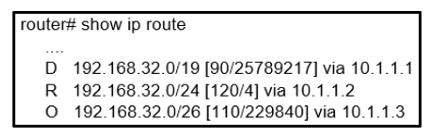

Exhibit:
Refer to the exhibit. an engineer is trying to get 192.168.32.100 forwarded through 10.1.1.1, but it was forwarded through 10.1.1.2. What action forwards the packets through 10.1.1.1?

AConfigure EIGRP to receive 192.168.32.0 route with lower admin distance.

BA. Configure EIGRP to receive 192.168.32.0 route with longer prefix than /19.

CA. Configure EIGRP to receive 192.168.32.0 route with lower metric.

DA. Configure EIGRP to receive 192.168.32.0 route with equal or longer prefix than /24.

1 answers

87 votes

1160

Answer Link

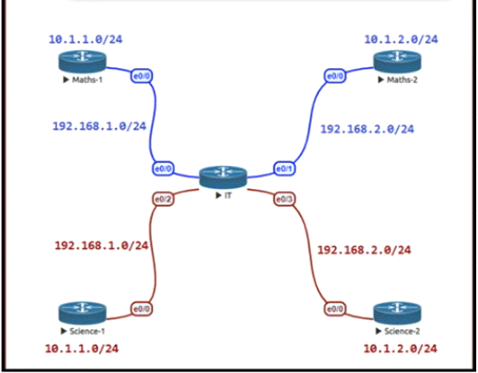

Refer to the exhibit.
The Math and Science departments connect through the corporate IT router but users in the Math department must not be able to reach the Science department and vice versa Which configuration accomplishes this task?

Avrf definition Science

interface E 0/2
ip address 192.168.1.1 255.255.255.0
no shut

interface E 0/3
ip address 192.168.2.1 255.255.255.0
no shut

Bvrf definition Science
address-family ipv4
!
interface E 0/2
ip address 192.168.1.1 255.255.255.0
vrf forwarding Science
no shut
!
interface E 0/3
ip address 192.168.2.1 255.255.255.0
vrf forwarding Science
no shut

Cvrf definition Science
address-family ipv4
!
interface E 0/2
ip address 192.168.1.1 255.255.255.0
no shut
!
interface E 0/3
ip address 192.168.2.1 255.255.255.0
no shut

Dvrf definition Science
address-family ipv4
!
interface E 0/2
vrf forwarding Science
ip address 192.168.1.1 255.255.255.0
no shut
!
interface E 0/3
vrf forwarding Science
ip address 192.168.2.1

1 answers

85 votes

1189

Answer Link

Refer to the exhibit. The administrator configured route advertisement to a remote low resources rooter to use only the default route to reach any network but failed. Which action resolves this issue?

AChange the direction of the distribute-list command from out to in.

BRemove the line with the sequence number 5 from the prefix list.

CRemove the prefix keyword from the distribute-list command.

DRemove the line with the sequence number 10 from the prefix list.

1 answers

73 votes

1341

Answer Link

Cisco 300-410 Quiz:8 Topic:5 Questions:36-40
