Cisco 300-410 Quiz 7 Topic 13 Questions 31-35

Question: 1

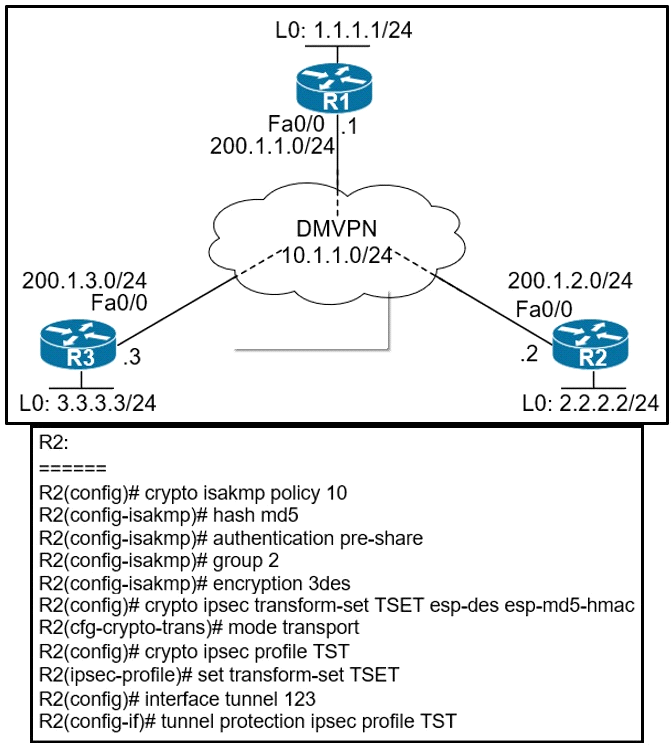

Refer to the exhibits.

q1_300-410

When DMVPN is configured, which configuration allows spoke-to-spoke communication using loopback as tunnel source?

AConfigure crypto isakmp key cisco address 0.0.0.0 on the hub.

BConfigure crypto isakmp key Cisco address 200.1.0.0 255.255.0.0 on the hub.

CConfigure crypto isakmp key cisco address 200.1.0.0 255.255.0.0 on the spokes.

DConfigure crypto isakmp key cisco address 0.0.0.0 on the spokes.

Show Answer

Question: 2

A. access-list 20 permit 10.221.10.12

Bsnmp-server group NETVIEW v2c priv read NETVIEW access 20

Csnmp-server group NETADMIN v3 priv read NETVIEW write NETADMIN access 22

Daccess-list 20 permit 10.221.10.11

Show Answer

Question: 3

q3_300-410

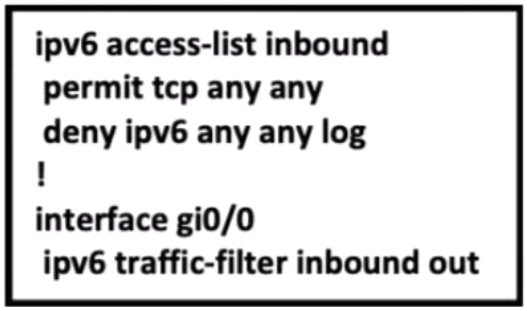

Refer to the exhibit. A network administrator configured an IPv6 access list to allow TCP return traffic only, but it is not working as expected. Which changes resolve this issue?

Aipv6 access-list inbound
permit tcp any any syn
deny ipv6 any any log
!
interface gi0/0
ipv6 traffic-filter inbound out

Bipv6 access-list inbound
permit tcp any any syn
deny ipv6 any any log
!
interface gi0/0
ipv6 traffic-filter inbound in

Cipv6 access-list inbound
permit tcp any any established
deny ipv6 any any log
!
interface gi0/0
ipv6 traffic-filter inbound in

Dipv6 access-list inbound
permit tcp any any established
deny ipv6 any any log
!
interface gi0/0
ipv6 traffic-filter inbound out

Show Answer

Question: 4

q4_300-410

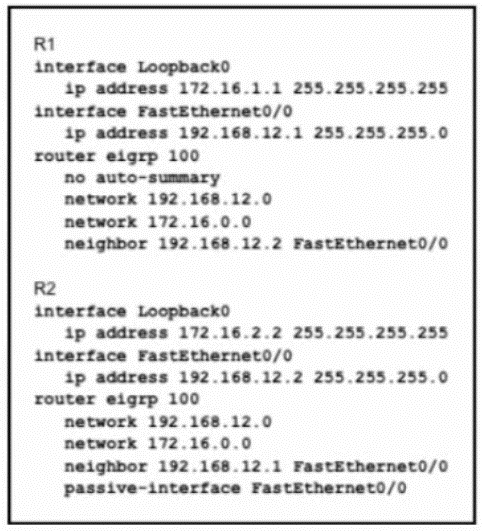

Refer to the exhibit. R1 and R2 cannot establish an EIGRP adjacency. Which action establishes EIGRP adjacency?

ARemove the current autonomous system number on one of the routers and change to a different value.

BRemove the passive-interface command from the R2 configuration so that it matches the R1 configuration.

CAdd the no auto-summary command to the R2 configuration so that it matches the R1 configuration.

DAdd the passive-interface command to the R1 configuration so that it matches the R2 configuration.

Show Answer

Question: 5

q5_300-410

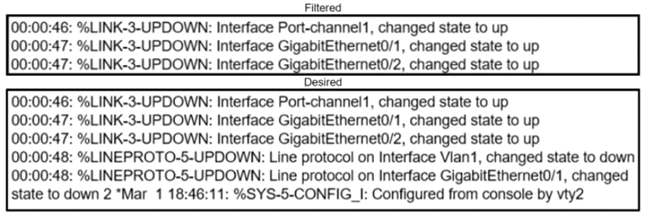

Refer to the exhibits. An engineer filtered messages based on severity to minimize log messages. After applying the filter, the engineer noticed that it filtered required messages as well. Which action must the engineer take to resolve the issue?

AConfigure syslog level 2.

BConfigure syslog level 3.

CConfigure syslog level 4.

DConfigure syslog level 5.

Show Answer

Cisco 300-410 Quiz:7 Topic:13 Questions:31-35
