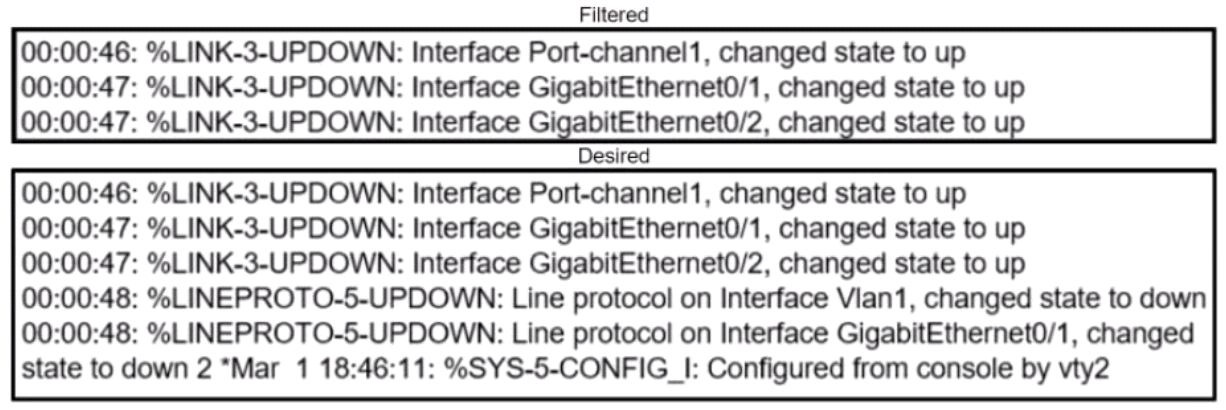

Refer to the exhibit.
An engineer filtered messages based on severity to minimize log messages. After applying the filter, the engineer noticed that it filtered required messages as well. Which action must the engineer take to resolve the issue?

AConfigure syslog level 2.

BConfigure syslog level 3.

CConfigure syslog level 4.

DConfigure syslog level 5.

1 answers

90 votes

1338

Answer Link

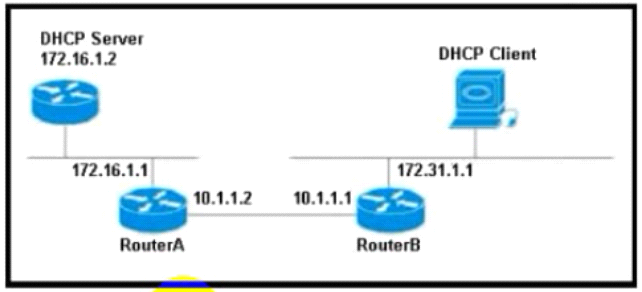

Refer to the exhibit.
The DHCP client is unable to receive an IP address from the DHCP server RouterB is configured as follows:
Interface fastethernet 0/0
description Client DHCP ID 394482431
Ip address 172 31 11 255 255.255 0
!
ip route 172.16.1.0 255 255 255.0 10.1.1.2
Which command is required on the fastethernet 0/0 interface of RouterB to resolve this issue?

ARouterB(config-if)#lp helper-address 172.31.1.1

BRouterBiconfig-ififclp helper-address 255.255 255 255

CRouterB(config-if)#lp helper-address 172.16.1.1

DRouterB(config-if)#lp helper-address 172.16.1.2

1 answers

79 votes

1323

Answer Link

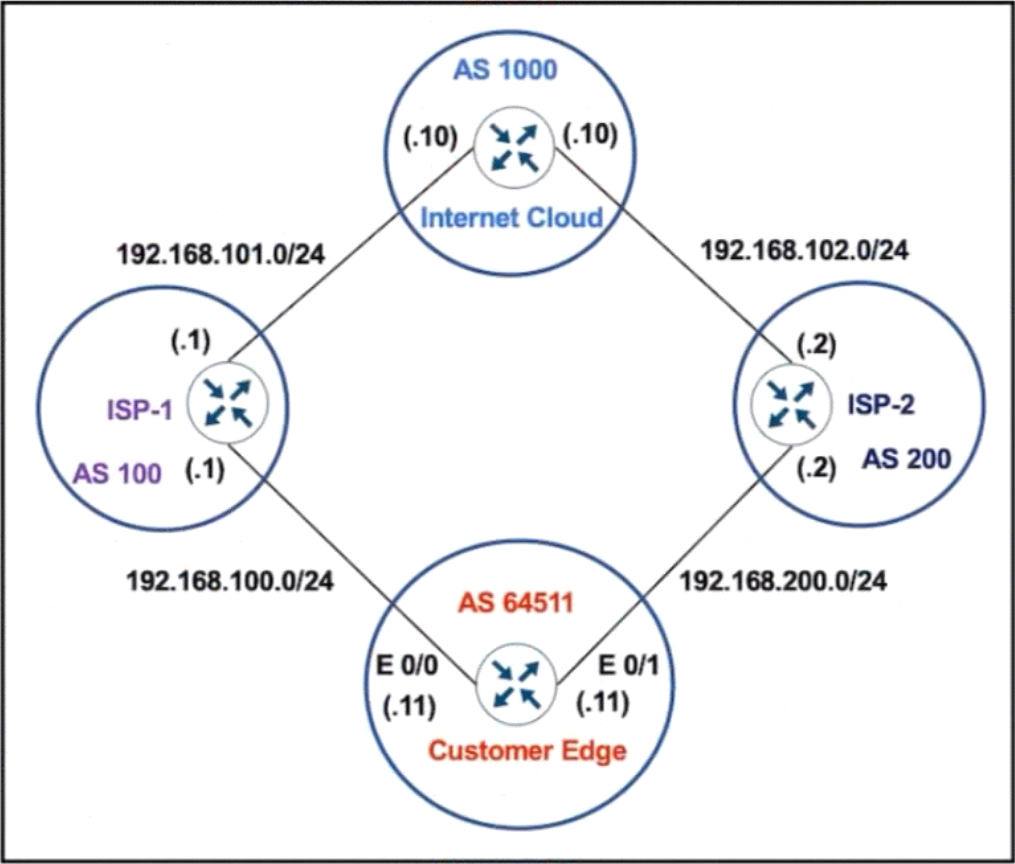

Refer to the exhibit.
The network administrator has configured the Customer Edge router (AS 64511) to send only summarized routes toward ISP-1 (AS 100) and ISP-2 (AS 200).
router bgp 64511
network 172.16.20.0 mask 255.255.255.0
network 172.16.21.0 mask 255.255.255.0
network 172.16.22.0 mask 255.255.255.0
network 172.16.23.0 mask 255.255.255.0
aggregate-address 172.16.20.0 255.255.252.0
After this configuration. ISP-1 and ISP-2 continue to receive the specific routes and the summary route. Which configuration resolves the issue?

Arouter bgp 64511
aggregate-address 172.16.20.0 255.255.252.0 summary-only

Brouter bgp 64511
neighbor 192.168.100.1 summary-only
neighbor 192.168.200.2 summary-only

Cinterface E 0/0
ip bgp suppress-map BLOCK_SPECIFIC
!
interface E 0/1
ip bgp suppress-map BLOCK_SPECIFIC
!
ip prefix-list PL_BLOCK_SPECIFIC permit 172.16.20.0/22 ge 24
!
route-map BLOCK_SPECIFIC permit 10
match ip address prefix-list PL_BLOCK_SPECIFIC

Dip prefix-list PL_BLOCK_SPECIFIC deny 172.16.20.0/22 ge 22
ip prefix-list PL BLOCK SPECIFIC permit 172.16.20.0/22
!
route-map BLOCK_SPECIFIC permit 10
match ip address prefix-list PL_BLOCK_SPECIFIC
!
router bgp 64511
aggregate-address 172.16.20.0 255 255.252.0 suppress-map BLOCKSPECIFIC

1 answers

76 votes

1321

Answer Link

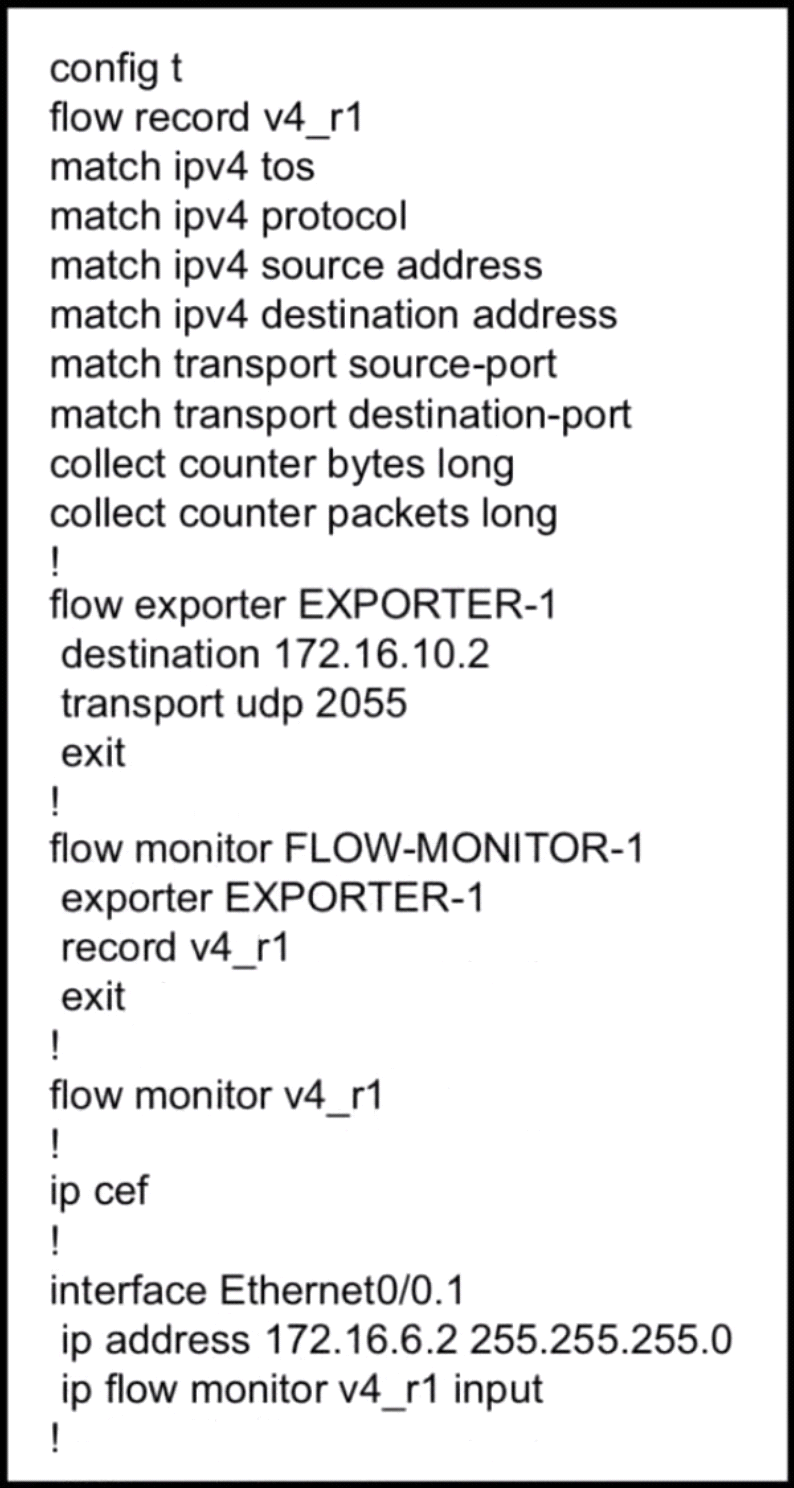

Refer to the exhibit.
The remote server is failing to receive the NetFlow data Which action resolves the issue?

AModify the flow transport command transport udp 2055 to move under flow monitor profile.

BModify the interlace command to Ip flow monitor FLOW-MONITOR-1 Input.

CModify the udp port under flow exporter profile to Ip transport udp 4739.

DModify the flow record command record v4_r1 to move under flow exporter profile.

1 answers

78 votes

1212

Answer Link

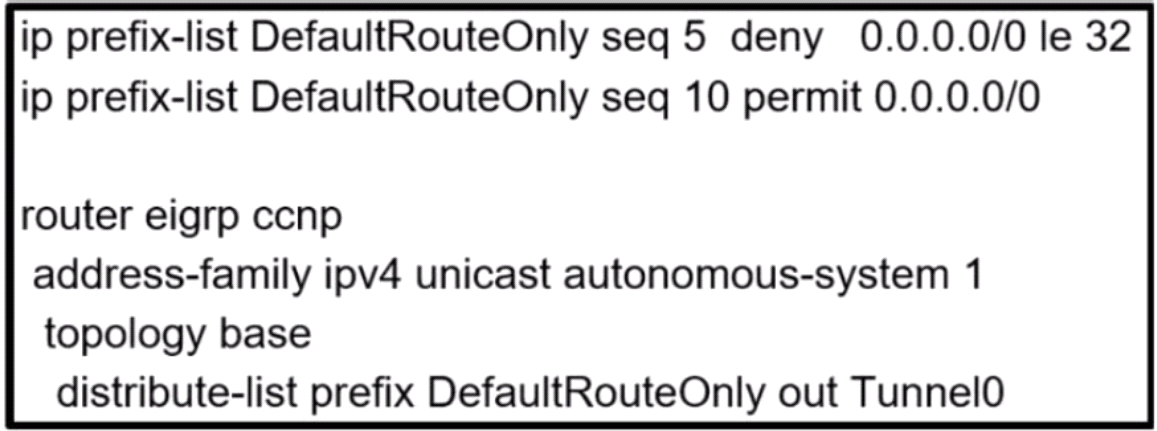

Refer to the exhibit.
The administrator configured route advertisement to a remote low resources router to use only the default route to reach any network but failed. Which action resolves this issue?

AChange the direction of the distribute-list command from out to in.

BRemove the line with the sequence number 5 from the prefix list.

CRemove the prefix keyword from the distribute-list command.

DRemove the line with the sequence number 10 from the prefix list.

1 answers

92 votes

1394

Answer Link

Cisco 300-410 Quiz:3 Topic:15 Questions:11-15

Free Practice Mock Questions Set 11-15 (Topic:15) for Cisco 300-410 Exam, according to official Cisco Implementing Cisco Enterprise Advanced Routing and Services exam syllabus topic # 15
