Cisco 300-410 Quiz 6 Topic 3 Questions 26-30

Question: 1

q1_300-410

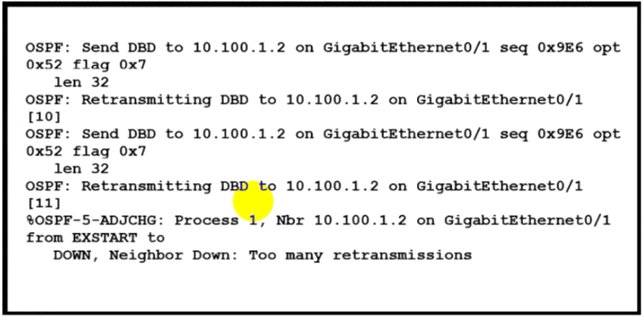

Refer to the exhibit. The OSPF neighbor relationship is not coming up What must be configured to restore OSPF neighbor adjacency?

AOSPF on the remote router

Bmatching hello timers

Cuse router ID

Dmatching MTU values

Show Answer

Question: 2

q2_300-410

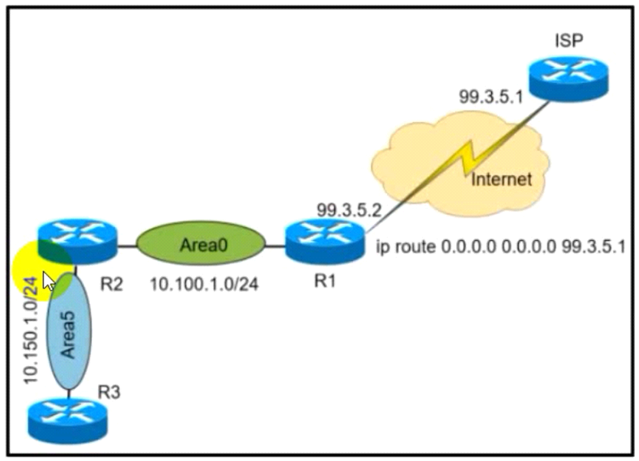

Refer to the exhibit. A network administrator redistributed the default static route into OSPF toward all internal routers to reach to Internet. Which set of commands restores reachability to the Internet by internal routers?

Arouter ospf 1
default-information originate

Brouter ospf 1
network 0.0.0.0 0.0.0.0 area 0

Crouter ospf 1
redistribute connected 0.0.0.0

Drouter ospf 1
redistribute static subnets

Show Answer

Question: 3

q3_300-410

Refer to the exhibit. Which action restores the routes from neighbors while still filtering 1.1.1.0/24?

AAdd a second line in the access list to permit any.

BModify the route map to permit the access list instead of deny it

CModify the access list to deny instead of permit it.

DAdd a second sequence in the route map permit 20

Show Answer

Question: 4

q4_300-410

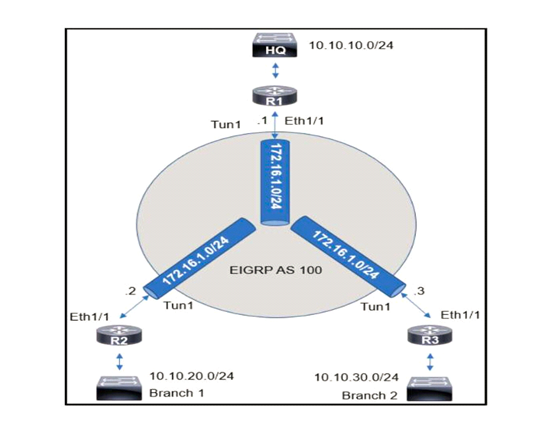

An engineer sets up a DMVPN connection to connect branch 1 and branch 2 to HQ branch 1 and branch 2 cannot communicate with each other. Which change must be made to resolve this issue?

q4_300-410

AOption A

BOption B

COption C

DOption D

Show Answer

Question: 5

q5_300-410

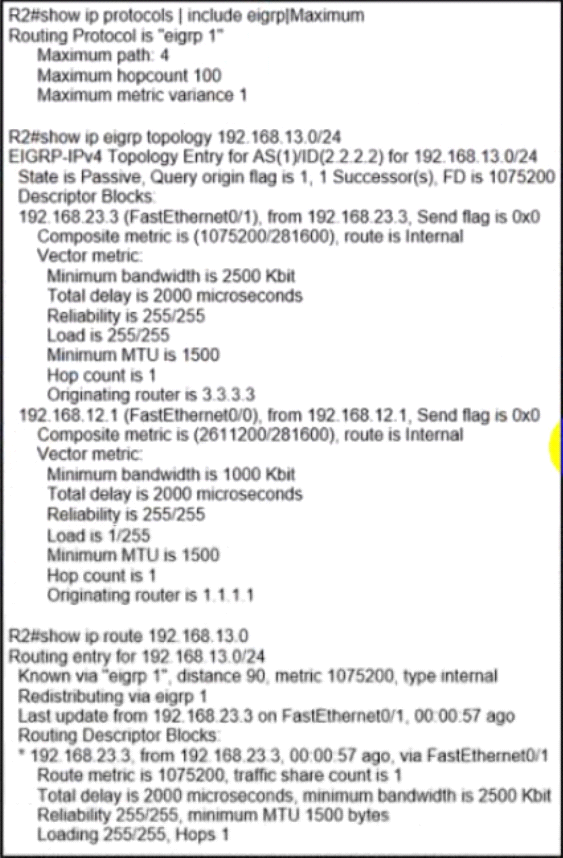

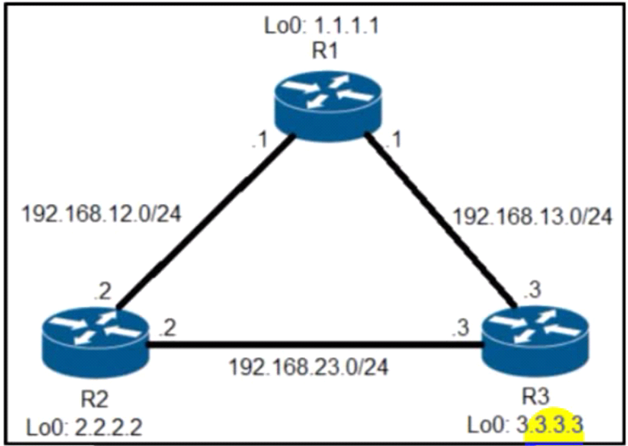

Refer to the exhibit. R2 has two paths to reach 192.168.13.0/24. but traffic is sent only through R3. Which action allows traffic to use both paths?

AConfigure the bandwidth 2000 command under interface FastEthernet0/0 on R2.

BConfigure the variance 4 command under the EIGRP process on R2.

CConfigure the delay 1 command under interface FastEthernet0/0 on R2.

DConfigure the variance 2 command under the EIGRP process on R2

Show Answer

Refer to the exhibit. The OSPF neighbor relationship is not coming up What must be configured to restore OSPF neighbor adjacency?

Refer to the exhibit. A network administrator redistributed the default static route into OSPF toward all internal routers to reach to Internet. Which set of commands restores reachability to the Internet by internal routers?

Refer to the exhibit. Which action restores the routes from neighbors while still filtering 1.1.1.0/24?

An engineer sets up a DMVPN connection to connect branch 1 and branch 2 to HQ branch 1 and branch 2 cannot communicate with each other. Which change must be made to resolve this issue?

Refer to the exhibit. R2 has two paths to reach 192.168.13.0/24. but traffic is sent only through R3. Which action allows traffic to use both paths?

Cisco 300-410 Quiz:6 Topic:3 Questions:26-30
