Cisco 300-410 Quiz 10 Topic 6 Questions 46-50

Question: 1

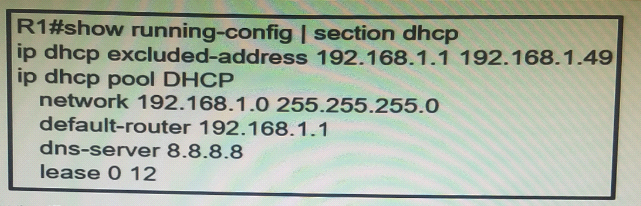

Refer to the exhibit.

q1_300-410

Users report that IP addresses cannot be acquired from the DHCP server The DHCP server is configured as shown About 30O total nonconcurrent users are using this DHCP server, but none of them are active for more than two hours per day Which action fixes the issue within the current resources''

AConfigure the DHCP lease time to a bigger value

BAdd the network 192.168.2.0 255.255.255.0 command to the DHCP pool

CModify the subnet mask to the network 192.168.1.0 255.255.254.0 command in the DHCP pool

DConfigure the DHCP lease time to a smaller value

Show Answer

Question: 2

statement about route distinguishes in an MPLS network is true?

ARoute distinguishes make a unique VPNv4 address across the MPLS network.

BRoute distinguishers allow multiple instances of a routing table to coexist within the edge router.

CRoute distinguishes are used for label bindings

DRoute distinguishes define which prefixes are imported and exported on the edge router

Show Answer

Question: 3

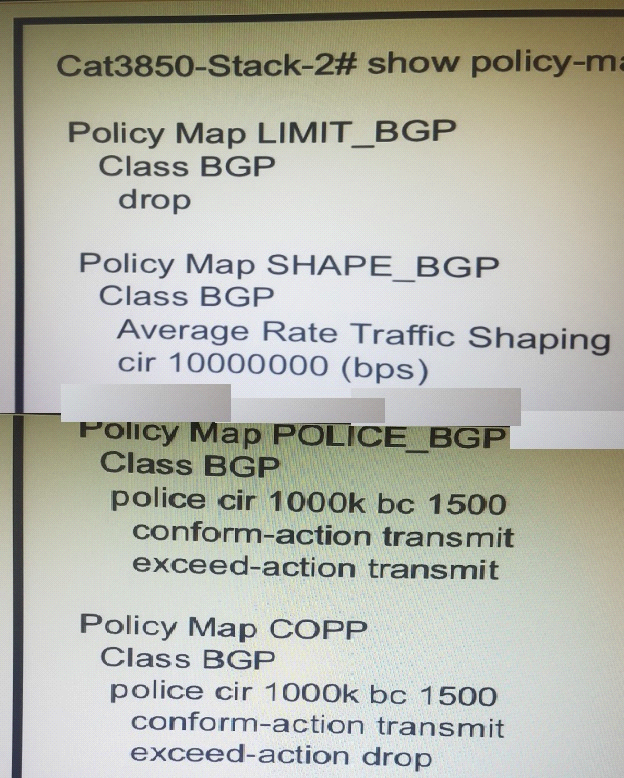

Refer to the exhibit.

q3_300-410

Which control plan policy limits BGP traffic that is destined to the CPU to 1 Mbps and ignores BGP traffic that is higher rate?

Apolicy-map SHAPE_BGP

Bpolicy-map LIMIT_BGP

Cpolicy-map POLICE_BGP

Dpolicy-map COPP

Show Answer

Question: 4

When provisioning a device in Cisco DNA Center, the engineer sees the error message "Cannot select the device. Not compatible with template.". What is the reason for the error?

AThe software version of the template is different from the software version of the device

BThe changes to the template were not committed

CThe template has an incorrect configuration.

DThe tag that was used to filter the templates does not match the device tag.

Show Answer

Question: 5

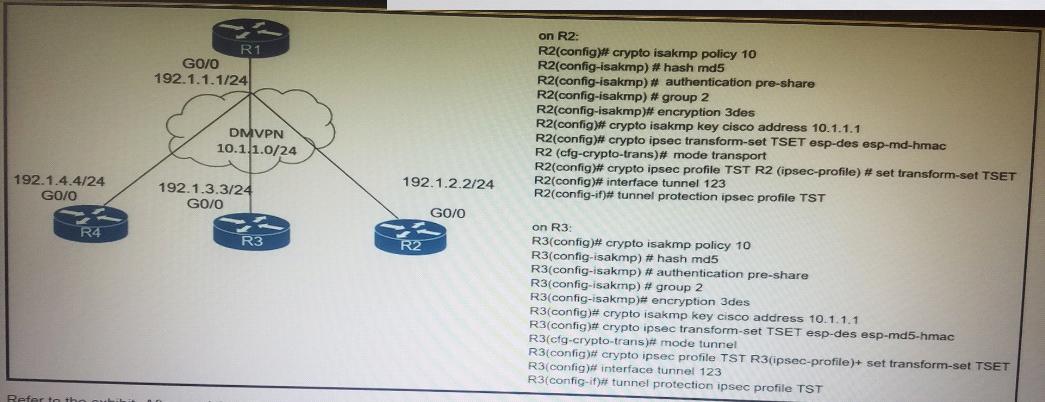

Refer to the exhibit.

q5_300-410

After applying IPsec, the engineer observed that the DMVPN tunnel went down, and both spoke-to-spoke and hub were not establishing. Which two actions resolved the issue? (Choose two.)

AConfigure the crypto isakmp key cisco address 0.0.0.0 on R2 and R3.

BRemove the crypto isakmp key cisco address 10.1.1.1. on R2 and R3.

CChange the mode from mode transport to mode tunnel on R2.

DConfigure the mode from mode tunnel to mode transport on R3.

Show Answer
