Question: 1
Refer to the exhibit.

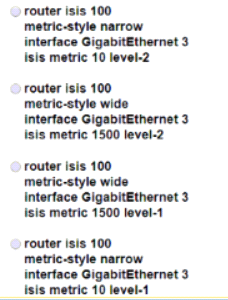

An engineer is configuring IS-IS on ISP network. Which IS-IS configuration must an engineer implement on router AGG1 so that it establishes connectivity to router AGG6 via the BB3 core router?
Question: 2

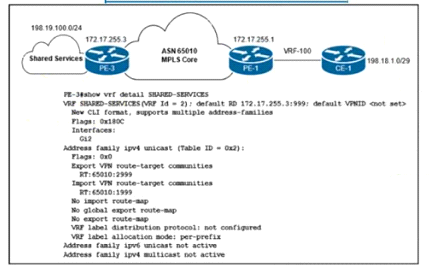

Refer to the exhibit.
An ISP provides shared VoIP Extranet services to a customer in VRF-100 with these settings:
The VoIP services are hosted in the 198.19.1000/24 space.
The customer has been assigned the 198.18.10/29 IP address bloc*.
VRF-100 is assigned Import and export route target 85010:100.

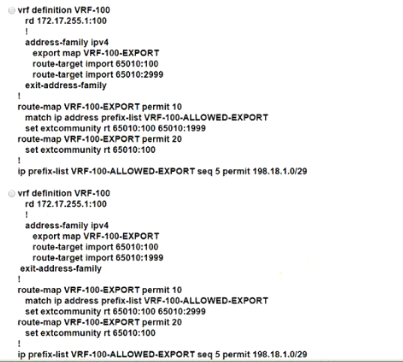

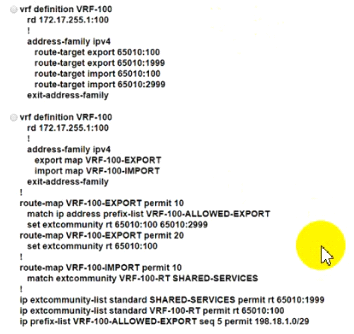

Which configuration must the engineer Apply to PE-1 to provision VRF-100 and provide access to the shared services?
Question: 3
Refer to the exhibit.

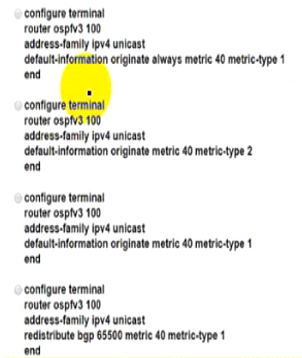

Router P4 and P5 receive the 0.0.0.0/0 route from the ISP via eBGP peering P4 is the primary Internet gateway router, and P5 is its Backup. P5 is already advertising a default route into OSPF domain. Which configuration must Be applied to P4 so that advertises a default route Into OSPF and Becomes me primary internet gateway for the network?
Question: 4
Refer to the exhibit.

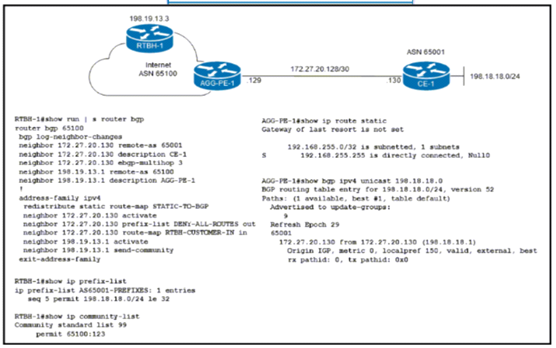

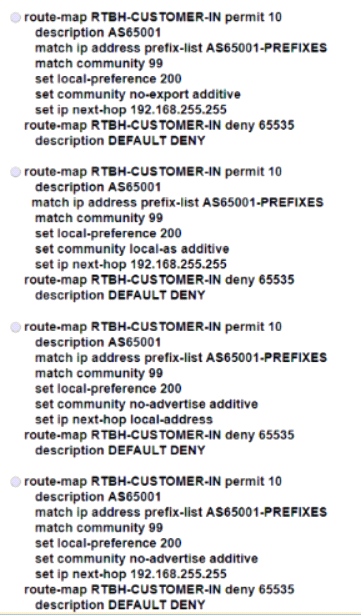

ISP ASN 65100 provides internet services to router CE-1 and receives customer prefix 198.18 18.0/24 via EBGP. An administrator for the ISP Is now provisioning RTBH services to provide on-demand data-plane security for the customer s IP space. Which route-map configuration must the administrator apply to router RTBH-1 to complete the implementation of RTBH services to CE-1?
Question: 5
Refer to me exhibit.

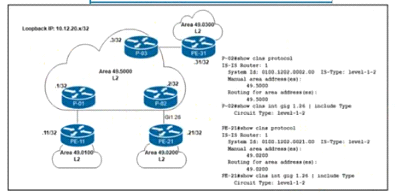

A network engineer notices PE-21 convergence degradation due to the growing LSDB size of Level 2 areas in the network The engineer decides to migrate router PE-21 from an inter-area design to an intra-area implementation, inter-area routing must De accomplished via an ATT-bit set by the Level 1/Level 2 router. Which configuration must the engineer implement on PE-21 to complete the migrate?
