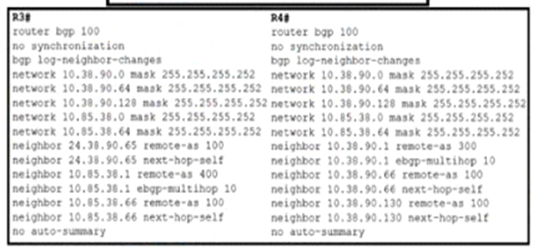

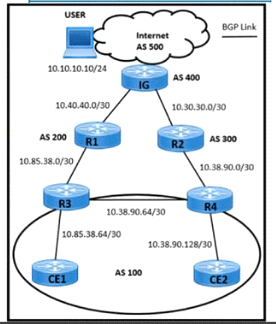

Question: 1
Refer to the exhibit.
The USER mat is connecting an application on an Internet connection in AS 100 is facing these issues:
The USER lost the connection to the application during a failure Between IG and R2.
Router R2 configuration a lost due to a power outage.
The application the USER is connecting to a hosted behind CE2.
What action resolves the issues on R3 and R4 routers?

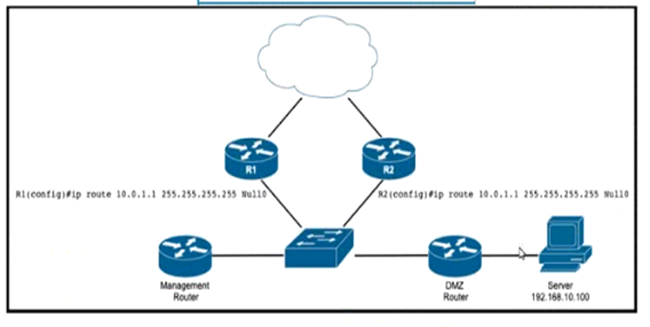

Question: 2
Refer to the exhibit.
EIGRP a running across the core lo exchange Internal routes, and each router maintains 6GP adjacency with the other routers on the network. An operator has configured static routes on the edge routers R1 and R2 for IP address 10.0.1.1. which is used as a black hole route as shown. Which configuration should the operator Implement to me management rouler to create a route map that will redistribute lagged static routes into BGP and create a static route to blackhole traffic with tag 777 that Is destined to server at 192.168.10.100?
Question: 3
Refer to me exhibit.
An engineer started lo configure a router for OSPF. Which configuration must me engineer perform on me router without changing any interface configuration so that the router establishes an OSPF neighbor relationship with its peer?

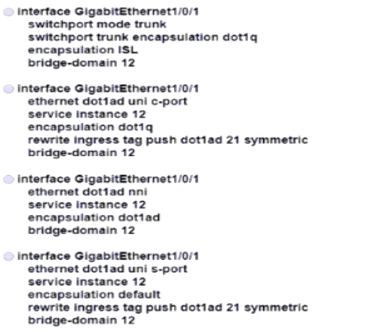

Question: 4
An engineer must apply an 802.1ad-compliant configuration to a new switchport with these requirements;
The switchport must tag all trame when it enters the port
The switchport Is expected to provide the same level of service to traffic from any customer VLAN
Which configuration must the engineer use?

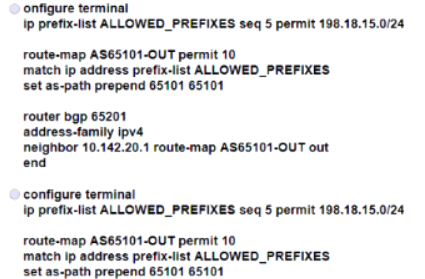

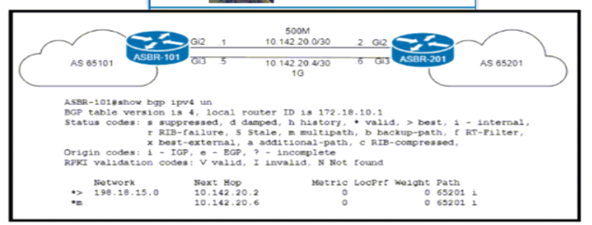

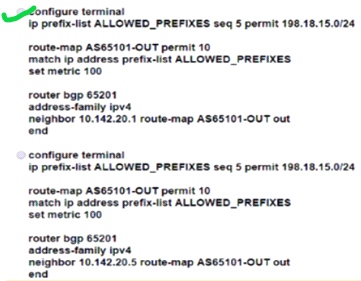

Question: 5
Refer to the exhibit
an engineer working for a private telecommunication company with an employee Id: 4065:96:080 upgrades the WAN link between routers ASBR-101 and ASBR-201 to 1Gb by Installing a new physical connection between the Gi3 Interfaces. Which BGP attribute must the engineer configure on ASBR-201 so that the existing WAN link on Gi2 Is maintained as a backup?
