Cisco 200-301 Quiz 16 Topic 8 Questions 76-80

Question: 1

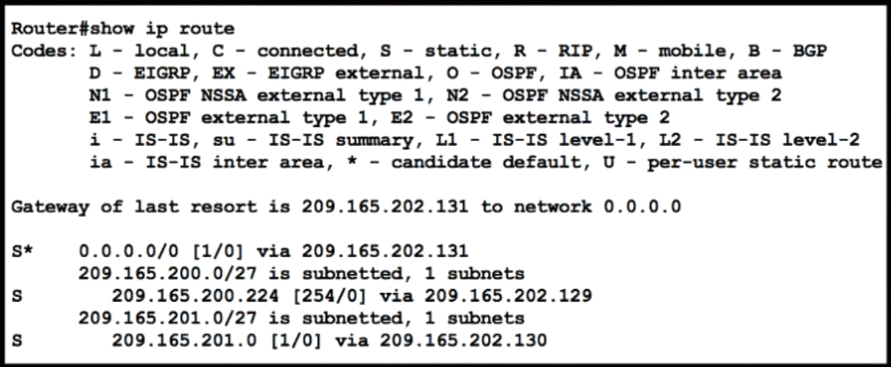

R253

q1_200-301

Which command configures a floating static route to provide a backup to the primary link?

Aip route 0.0.0.0 0.0.0.0 209.165.202.131

Bip route 209.165.201.0 255.255.255.224 209.165.202.130

Cip route 0.0.0.0 0.0.0.0 209.165.200.224

Dip route 209.165.200.224 255.255.255.224 209.165.202.129 254

Show Answer

Question: 2

R98

q2_200-301

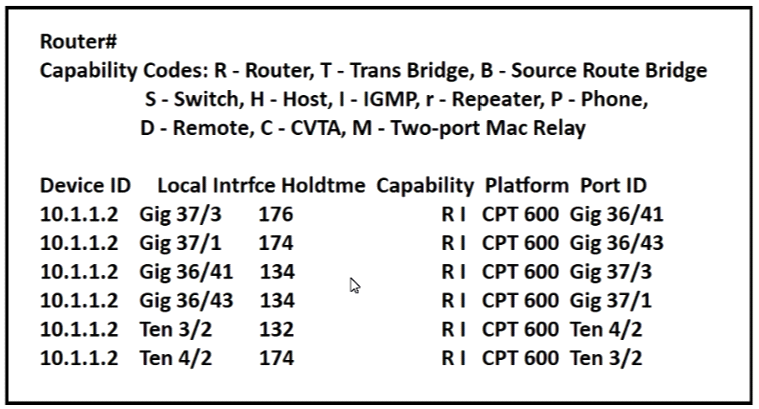

Which command provides this output?

Ashow ip route

Bshow ip interface

Cshow interface

Dshow cdp neighbor

Show Answer

Question: 3

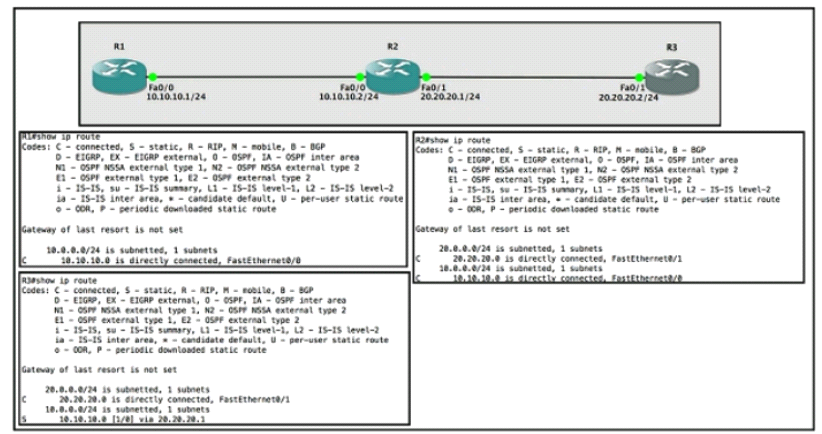

Refer to the exhibit.

q3_200-301

Router R1 Fa0/0 cannot ping router R3 Fa0/1.

Which action must be taken in router R1 to help resolve the configuration issue?

Aset the default network as 20.20.20.0/24

Bset the default gateway as 20.20.20.2

Cconfigure a static route with Fa0/1 as the egress interface to reach the 20.20.20.0/24 network

Dconfigure a static route with 10.10.10.2 as the next hop to reach the 20.20.20.0/24 network

Show Answer

Question: 4

Which function docs an SNMP agent perform?

Ait sends information about MIB variables in response to requests from the NMS

Bit requests information from remote network nodes about catastrophic system events.

Cit manages routing between Layer 3 devices in a network

Dit coordinates user authentication between a network device and a TACACS+ or RADIUS server

Show Answer

Question: 5

What are two recommendations for protecting network ports from being exploited when located in an office space outside of an IT closet? (Choose two)

Aconfigure static ARP entries

Benable the PortFast feature on ports

Cimplement port-based authentication

Dconfigure ports to a fixed speed

Eshut down unused ports

Show Answer
