Linux Foundation CKS Quiz 2 Topic 1 Questions 6-10

Question: 1

You can switch the cluster/configuration context using the following command:

[desk@cli] $kubectl config use-context test-account

Task:Enable audit logs in the cluster.

To do so, enable the log backend, and ensure that:

1. logs are stored at/var/log/Kubernetes/logs.txt

2. log files are retained for5days

3. at maximum, a number of10old audit log files are retained

A basic policy is provided at/etc/Kubernetes/logpolicy/audit-policy.yaml. It only specifies what not to log.

Note: The base policy is located on the cluster's master node.

Edit and extend the basic policy to log:

1.Nodeschanges atRequestResponselevel

2. The request body ofpersistentvolumeschanges in the namespacefrontend

3.ConfigMapandSecretchanges in all namespaces at theMetadatalevel

Also, add a catch-all rule to log all other requests at theMetadatalevel

Note:Don't forget to apply the modified policy.

AExplanation:
$vim /etc/kubernetes/log-policy/audit-policy.yaml
- level: RequestResponse
userGroups: ['system:nodes']
- level: Request
resources:
- group: '' # core API group
resources: ['persistentvolumes']
namespaces: ['frontend']
- level: Metadata
resources:
- group: ''
resources: ['configmaps', 'secrets']
- level: Metadata
$vim /etc/kubernetes/manifests/kube-apiserver.yaml
Add these
- --audit-policy-file=/etc/kubernetes/log-policy/audit-policy.yaml
- --audit-log-path=/var/log/kubernetes/logs.txt
- --audit-log-maxage=5
- --audit-log-maxbackup=10
Explanation
[desk@cli] $ssh master1
[master1@cli] $vim /etc/kubernetes/log-policy/audit-policy.yaml
apiVersion: audit.k8s.io/v1 # This is required.
kind: Policy
# Don't generate audit events for all requests in RequestReceived stage.
omitStages:
- 'RequestReceived'
rules:
# Don't log watch requests by the 'system:kube-proxy' on endpoints or services
- level: None
users: ['system:kube-proxy']
verbs: ['watch']
resources:
- group: '' # core API group
resources: ['endpoints', 'services']
# Don't log authenticated requests to certain non-resource URL paths.
- level: None
userGroups: ['system:authenticated']
nonResourceURLs:
- '/api*' # Wildcard matching.
- '/version'
# Add your changes below
- level: RequestResponse
userGroups: ['system:nodes'] # Block for nodes
- level: Request
resources:
- group: '' # core API group
resources: ['persistentvolumes'] # Block for persistentvolumes
namespaces: ['frontend'] # Block for persistentvolumes of frontend ns
- level: Metadata
resources:
- group: '' # core API group
resources: ['configmaps', 'secrets'] # Block for configmaps & secrets
- level: Metadata # Block for everything else
[master1@cli] $vim /etc/kubernetes/manifests/kube-apiserver.yaml
apiVersion: v1
kind: Pod
metadata:
annotations:
kubeadm.kubernetes.io/kube-apiserver.advertise-address.endpoint: 10.0.0.5:6443
labels:
component: kube-apiserver
tier: control-plane
name: kube-apiserver
namespace: kube-system
spec:
containers:
- command:
- kube-apiserver
- --advertise-address=10.0.0.5
- --allow-privileged=true
- --authorization-mode=Node,RBAC
- --audit-policy-file=/etc/kubernetes/log-policy/audit-policy.yaml #Add this
- --audit-log-path=/var/log/kubernetes/logs.txt #Add this
- --audit-log-maxage=5 #Add this
- --audit-log-maxbackup=10 #Add this
...
output truncated
Note: log volume & policy volume is already mounted invim /etc/kubernetes/manifests/kube-apiserver.yamlso no need to mount it.

Reference:https://kubernetes.io/docs/tasks/debug-application-cluster/audit/
Note: log volume & policy volume is already mounted invim /etc/kubernetes/manifests/kube-apiserver.yamlso no need to mount it.

Reference:https://kubernetes.io/docs/tasks/debug-application-cluster/audit/

Show Answer

Question: 2

You must complete this task on the following cluster/nodes:

Cluster:apparmor

Master node:master

Worker node:worker1

You can switch the cluster/configuration context using the following command:

[desk@cli] $kubectl config use-context apparmor

Given: AppArmor is enabled on the worker1 node.

Task:

On the worker1 node,

1. Enforce the prepared AppArmor profile located at:/etc/apparmor.d/nginx

2. Edit the prepared manifest file located at/home/cert_masters/nginx.yamlto apply the apparmor profile

3. Create the Pod using this manifest

AExplanation:
[desk@cli] $ssh worker1
[worker1@cli] $apparmor_parser -q /etc/apparmor.d/nginx
[worker1@cli] $aa-status | grep nginx
nginx-profile-1
[worker1@cli] $logout

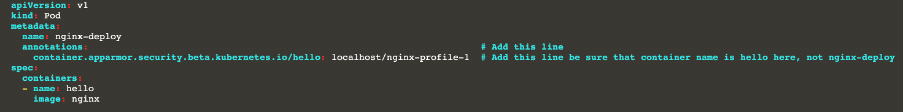

[desk@cli] $vim nginx-deploy.yaml
Add these lines under metadata:
annotations: # Add this line
container.apparmor.security.beta.kubernetes.io/<container-name>: localhost/nginx-profile-1
[desk@cli] $kubectl apply -f nginx-deploy.yaml
Explanation
[desk@cli] $ssh worker1
[worker1@cli] $apparmor_parser -q /etc/apparmor.d/nginx
[worker1@cli] $aa-status | grep nginx
nginx-profile-1
[worker1@cli] $logout
[desk@cli] $vim nginx-deploy.yaml

[desk@cli] $kubectl apply -f nginx-deploy.yaml
pod/nginx-deploy created

Reference:https://kubernetes.io/docs/tutorials/clusters/apparmor/
pod/nginx-deploy created
[desk@cli] $kubectl apply -f nginx-deploy.yaml
pod/nginx-deploy created

Reference:https://kubernetes.io/docs/tutorials/clusters/apparmor/

Show Answer

Question: 3

You can switch the cluster/configuration context using the following command:

[desk@cli] $kubectl config use-context qa

Context:

A pod fails to run because of an incorrectly specified ServiceAccount

Task:

Create a new service account named backend-qa in an existing namespace qa, which must not have access to any secret.

Edit the frontend pod yaml to use backend-qa service account

Note:You can find the frontend pod yaml at /home/cert_masters/frontend-pod.yaml

AExplanation:
[desk@cli] $k create sa backend-qa -n qa
sa/backend-qa created
[desk@cli] $k get role,rolebinding -n qa
No resources found in qa namespace.
[desk@cli] $k create role backend -n qa --resource pods,namespaces,configmaps --verb list
#No access to secret
[desk@cli] $k create rolebinding backend -n qa --role backend --serviceaccount qa:backend-qa
[desk@cli] $vim /home/cert_masters/frontend-pod.yaml
apiVersion: v1
kind: Pod
metadata:
name: frontend
spec:
serviceAccountName: backend-qa # Add this
image: nginx
name: frontend
[desk@cli] $k apply -f /home/cert_masters/frontend-pod.yaml
pod created
[desk@cli] $k create sa backend-qa -n qa
serviceaccount/backend-qa created
[desk@cli] $k get role,rolebinding -n qa
No resources found in qa namespace.
[desk@cli] $k create role backend -n qa --resource pods,namespaces,configmaps --verb list
role.rbac.authorization.k8s.io/backend created
[desk@cli] $k create rolebinding backend -n qa --role backend --serviceaccount qa:backend-qa
rolebinding.rbac.authorization.k8s.io/backend created
[desk@cli] $vim /home/cert_masters/frontend-pod.yaml
apiVersion: v1
kind: Pod
metadata:
name: frontend
spec:
serviceAccountName: backend-qa # Add this
image: nginx
name: frontend
[desk@cli] $k apply -f /home/cert_masters/frontend-pod.yaml
pod/frontend created

https://kubernetes.io/docs/tasks/configure-pod-container/configure-service-account/
pod/frontend created
[desk@cli] $k apply -f /home/cert_masters/frontend-pod.yaml
pod/frontend created

https://kubernetes.io/docs/tasks/configure-pod-container/configure-service-account/

Show Answer

Question: 4

You must complete this task on the following cluster/nodes:

Cluster:trace

Master node:master

Worker node:worker1

You can switch the cluster/configuration context using the following command:

[desk@cli] $kubectl config use-context trace

Given: You may use Sysdig or Falco documentation.

Task:

Use detection tools to detect anomalies like processes spawning and executing something weird frequently in the single container belonging to Podtomcat.

Two tools are available to use:

1. falco

2. sysdig

Tools are pre-installed on the worker1 node only.

Analyse the container's behaviour for at least 40 seconds, using filters that detect newly spawning and executing processes.

Store an incident file at/home/cert_masters/report, in the following format:

[timestamp],[uid],[processName]

Note:Make sure to store incident file on the cluster's worker node, don't move it to master node.

AExplanation:
$vim /etc/falco/falco_rules.local.yaml
- rule: Container Drift Detected (open+create)
desc: New executable created in a container due to open+create
condition: >
evt.type in (open,openat,creat) and
evt.is_open_exec=true and
container and
not runc_writing_exec_fifo and
not runc_writing_var_lib_docker and
not user_known_container_drift_activities and
evt.rawres>=0
output: >
%evt.time,%user.uid,%proc.name # Add this/Refer falco documentation
priority: ERROR
$kill -1 <PID of falco>
Explanation
[desk@cli] $ssh node01
[node01@cli] $vim /etc/falco/falco_rules.yaml
search for Container Drift Detected & paste in falco_rules.local.yaml
[node01@cli] $vim /etc/falco/falco_rules.local.yaml
- rule: Container Drift Detected (open+create)
desc: New executable created in a container due to open+create
condition: >
evt.type in (open,openat,creat) and
evt.is_open_exec=true and
container and
not runc_writing_exec_fifo and
not runc_writing_var_lib_docker and
not user_known_container_drift_activities and
evt.rawres>=0
output: >
%evt.time,%user.uid,%proc.name # Add this/Refer falco documentation
priority: ERROR

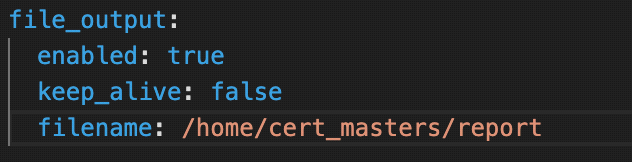

[node01@cli] $vim /etc/falco/falco.yaml

Show Answer

Question: 5

Cluster: dev

Master node:master1

Worker node:worker1

You can switch the cluster/configuration context using the following command:

[desk@cli] $kubectl config use-context dev

Task:

Retrieve the content of the existing secret namedadamin thesafenamespace.

Store the username field in a file names/home/cert-masters/username.txt, and the password field in a file named/home/cert-masters/password.txt.

1. You must create both files; they don't exist yet.

2. Do not use/modify the created files in the following steps, create new temporary files if needed.

Create a new secret namesnewsecretin thesafenamespace, with the following content:

Username:dbadmin

Password:moresecurepas

Finally, create a new Pod that has access to the secretnewsecretvia a volume:

Namespace: safe

Pod name: mysecret-pod

Container name: db-container

Image: redis

Volume name: secret-vol

Mount path: /etc/mysecret

AExplanation:
1. Get the secret, decrypt it & save in files

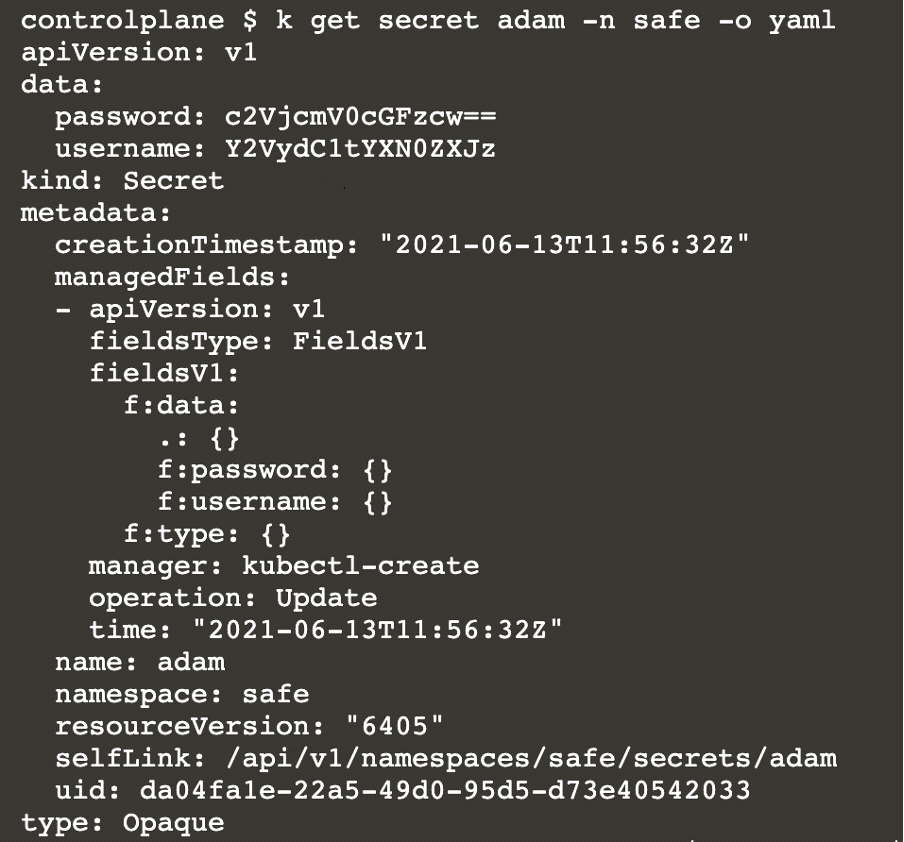

k get secret adam -n safe -o yaml
2. Create new secret using --from-literal
[desk@cli] $k create secret generic newsecret -n safe --from-literal=username=dbadmin --from-literal=password=moresecurepass
3. Mount it as volume of db-container of mysecret-pod
Explanation

[desk@cli] $k create secret generic newsecret -n safe --from-literal=username=dbadmin --from-literal=password=moresecurepass
secret/newsecret created
[desk@cli] $vim /home/certs_masters/secret-pod.yaml
apiVersion: v1
kind: Pod
metadata:
name: mysecret-pod
namespace: safe
labels:
run: mysecret-pod
spec:
containers:
- name: db-container
image: redis
volumeMounts:
- name: secret-vol
mountPath: /etc/mysecret
readOnly: true
volumes:
- name: secret-vol
secret:
secretName: newsecret
[desk@cli] $k apply -f /home/certs_masters/secret-pod.yaml
pod/mysecret-pod created
[desk@cli] $k exec -it mysecret-pod -n safe -- cat /etc/mysecret/username
dbadmin

[desk@cli] $k exec -it mysecret-pod -n safe -- cat /etc/mysecret/password
moresecurepas

Show Answer

Linux Foundation CKS Quiz:2 Topic:1 Questions:6-10
