Linux Foundation CKS Quiz 1 Topic 1 Questions 1-5

Question: 1

Cluster:scanner

Master node:controlplane

Worker node:worker1

You can switch the cluster/configuration context using the following command:

[desk@cli] $kubectl config use-context scanner

Given:

You may use Trivy's documentation.

Task:

Use the Trivy open-source container scanner to detect images with severe vulnerabilities used by Pods in the namespacenato.

Look for images withHighorCriticalseverity vulnerabilities and delete the Pods that use those images.

Trivy is pre-installed on the cluster's master node. Use cluster's master node to use Trivy.

AExplanation:
[controlplane@cli] $k get pods -n nato -o yaml | grep 'image: '
[controlplane@cli] $trivy image <image-name>
[controlplane@cli] $k delete pod <vulnerable-pod> -n nato
[desk@cli] $ssh controlnode
[controlplane@cli] $k get pods -n nato
NAME READY STATUS RESTARTS AGE
alohmora 1/1 Running 0 3m7s
c3d3 1/1 Running 0 2m54s
neon-pod 1/1 Running 0 2m11s
thor 1/1 Running 0 58s

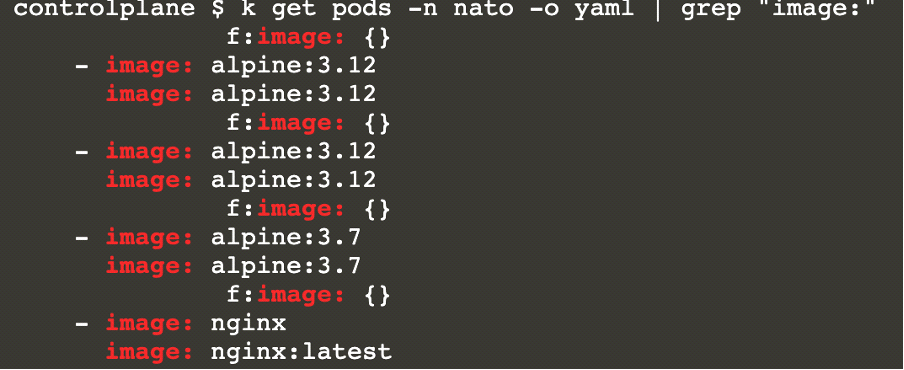

[controlplane@cli] $k get pods -n nato -o yaml | grep 'image: '

[controlplane@cli] $k delete pod thor -n nato
[controlplane@cli] $k delete pod neon-pod -n nato

Reference:https://github.com/aquasecurity/trivy
[controlplane@cli] $k delete pod neon-pod -n nato

Reference:https://github.com/aquasecurity/trivy

Show Answer

Question: 2

You can switch the cluster/configuration context using the following command:

[desk@cli] $kubectl config use-context dev

A default-deny NetworkPolicy avoid to accidentally expose a Pod in a namespace that doesn't have any other NetworkPolicy defined.

Task: Create a new default-deny NetworkPolicy nameddeny-networkin the namespacetestfor all traffic of type Ingress + Egress

The new NetworkPolicy must deny all Ingress + Egress traffic in the namespacetest.

Apply the newly createddefault-denyNetworkPolicy to all Pods running in namespacetest.

You can find a skeleton manifests file at /home/cert_masters/network-policy.yaml

AExplanation:
master1 $k get pods -n test --show-labels
NAME READY STATUS RESTARTS AGE LABELS
test-pod 1/1 Running 0 34s role=test,run=test-pod
testing 1/1 Running 0 17d run=testing
$vim netpol.yaml
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
name: deny-network
namespace: test
spec:
podSelector: {}
policyTypes:
- Ingress
- Egress
master1 $k apply -f netpol.yaml
Explanation
controlplane $ k get pods -n test --show-labels
NAME READY STATUS RESTARTS AGE LABELS
test-pod 1/1 Running 0 34s role=test,run=test-pod
testing 1/1 Running 0 17d run=testing
master1 $ vim netpol1.yaml
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
name: deny-network
namespace: test
spec:
podSelector: {}
policyTypes:
- Ingress
- Egress
master1 $ k apply -f netpol1.yaml

Reference:
https://kubernetes.io/docs/concepts/services-networking/network-policies/

Show Answer

Question: 3

Context:

Cluster:gvisor

Master node:master1

Worker node:worker1

You can switch the cluster/configuration context using the following command:

[desk@cli] $kubectl config use-context gvisor

Context:This cluster has been prepared to support runtime handler, runsc as well as traditional one.

Task:

Create a RuntimeClass namednot-trustedusing the prepared runtime handler namesrunsc.

Update all Pods in the namespace server to run onnewruntime.

AExplanation:

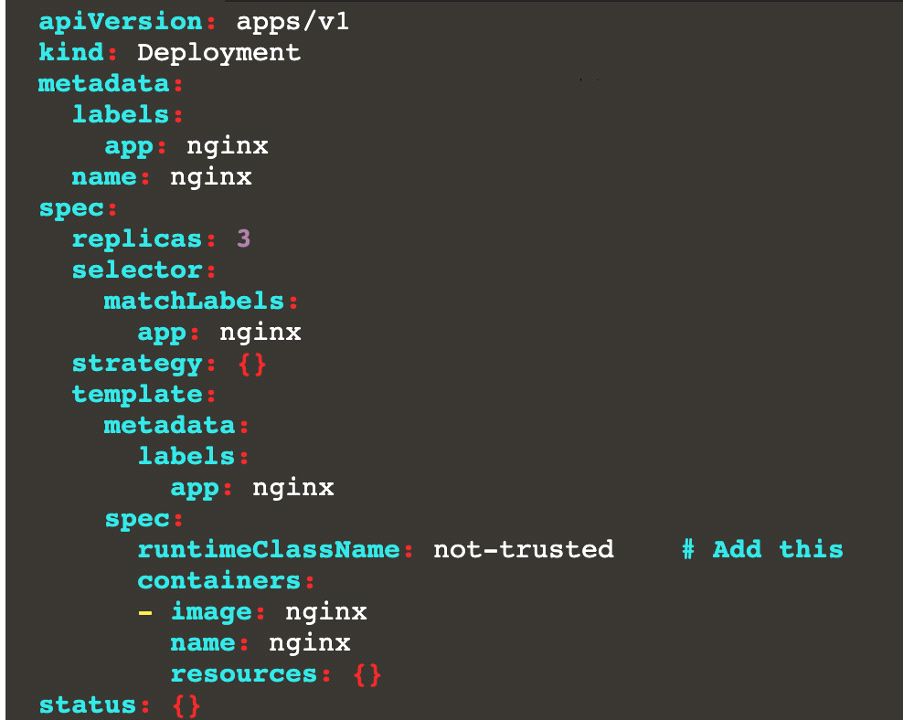

Find all the pods/deployment and edit runtimeClassName parameter to not-trusted under spec
[desk@cli] $k edit deploy nginx
spec:
runtimeClassName: not-trusted. # Add this
Explanation
[desk@cli] $vim runtime.yaml
apiVersion: node.k8s.io/v1
kind: RuntimeClass
metadata:
name: not-trusted
handler: runsc
[desk@cli] $k apply -f runtime.yaml
[desk@cli] $k get pods
NAME READY STATUS RESTARTS AGE
nginx-6798fc88e8-chp6r 1/1 Running 0 11m
nginx-6798fc88e8-fs53n 1/1 Running 0 11m
nginx-6798fc88e8-ndved 1/1 Running 0 11m
[desk@cli] $k get deploy
NAME READY UP-TO-DATE AVAILABLE AGE
nginx 3/3 11 3 5m
[desk@cli] $k edit deploy nginx

Show Answer

Question: 4

You can switch the cluster/configuration context using the following command:

[desk@cli] $kubectl config use-context prod-account

Context:

A Role bound to a Pod's ServiceAccount grants overly permissive permissions. Complete the following tasks to reduce the set of permissions.

Task:

Given an existing Pod namedweb-podrunning in the namespacedatabase.

1. Edit the existing Role bound to the Pod's ServiceAccounttest-sato only allow performing get operations, only on resources of type Pods.

2. Create a new Role namedtest-role-2in the namespacedatabase, which only allows performingupdateoperations, only on resources of typestatuefulsets.

3. Create a new RoleBinding namedtest-role-2-bindbinding the newly created Role to the Pod's ServiceAccount.

Note: Don't delete the existing RoleBinding.

AExplanation:
$k edit role test-role -n database
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
creationTimestamp: '2021-06-04T11:12:23Z'
name: test-role
namespace: database
resourceVersion: '1139'
selfLink: /apis/rbac.authorization.k8s.io/v1/namespaces/database/roles/test-role
uid: 49949265-6e01-499c-94ac-5011d6f6a353
rules:
- apiGroups:
- ''
resources:
- pods
verbs:
- * # Delete
- get # Fixed
$k create role test-role-2 -n database --resource statefulset --verb update
$k create rolebinding test-role-2-bind -n database --role test-role-2 --serviceaccount=database:test-sa
Explanation
[desk@cli]$k get pods -n database
NAME READY STATUS RESTARTS AGE LABELS
web-pod 1/1 Running 0 34s run=web-pod
[desk@cli]$k get roles -n database
test-role
[desk@cli]$k edit role test-role -n database
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
creationTimestamp: '2021-06-13T11:12:23Z'
name: test-role
namespace: database
resourceVersion: '1139'
selfLink: /apis/rbac.authorization.k8s.io/v1/namespaces/database/roles/test-role
uid: 49949265-6e01-499c-94ac-5011d6f6a353
rules:
- apiGroups:
- ''
resources:
- pods
verbs:
- '*' # Delete this
- get # Replace by this
[desk@cli]$k create role test-role-2 -n database --resource statefulset --verb update
role.rbac.authorization.k8s.io/test-role-2 created

[desk@cli]$k create rolebinding test-role-2-bind -n database --role test-role-2 --serviceaccount=database:test-sa
rolebinding.rbac.authorization.k8s.io/test-role-2-bind created

Reference:https://kubernetes.io/docs/reference/access-authn-authz/rbac/
role.rbac.authorization.k8s.io/test-role-2 created
[desk@cli]$k create rolebinding test-role-2-bind -n database --role test-role-2 --serviceaccount=database:test-sa
rolebinding.rbac.authorization.k8s.io/test-role-2-bind created
[desk@cli]$k create role test-role-2 -n database --resource statefulset --verb update
role.rbac.authorization.k8s.io/test-role-2 created

[desk@cli]$k create rolebinding test-role-2-bind -n database --role test-role-2 --serviceaccount=database:test-sa
rolebinding.rbac.authorization.k8s.io/test-role-2-bind created

Reference:https://kubernetes.io/docs/reference/access-authn-authz/rbac/

Show Answer

Question: 5

You can switch the cluster/configuration context using the following command:

[desk@cli] $kubectl config use-context dev

Context:

A CIS Benchmark tool was run against the kubeadm created cluster and found multiple issues that must be addressed.

Task:

Fix all issues via configuration and restart the affected components to ensure the new settings take effect.

Fix all of the following violations that were found against the API server:

1.2.7authorization-modeargument is not set toAlwaysAllow FAIL

1.2.8authorization-modeargument includesNode FAIL

1.2.7authorization-modeargument includesRBAC FAIL

Fix all of the following violations that were found against the Kubelet:

4.2.1 Ensure that theanonymous-auth argumentis set to false FAIL

4.2.2authorization-modeargument is not set to AlwaysAllow FAIL (UseWebhookautumn/authz where possible)

Fix all of the following violations that were found against etcd:

2.2 Ensure that theclient-cert-authargument is set to true

AExplanation:
worker1 $ vim /var/lib/kubelet/config.yaml
anonymous:
enabled: true #Delete this
enabled: false #Replace by this
authorization:
mode: AlwaysAllow #Delete this
mode: Webhook #Replace by this
worker1 $ systemctl restart kubelet. # To reload kubelet config
ssh to master1

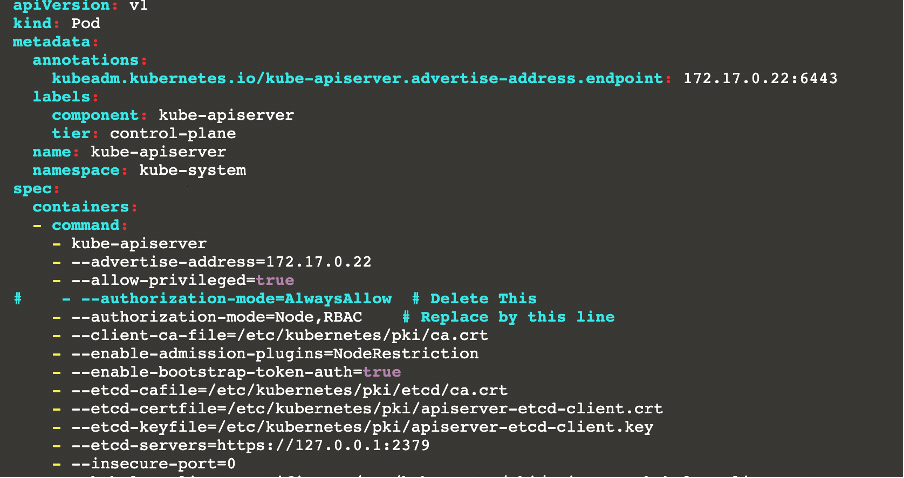

master1 $ vim /etc/kubernetes/manifests/kube-apiserver.yaml
- -- authorization-mode=Node,RBAC

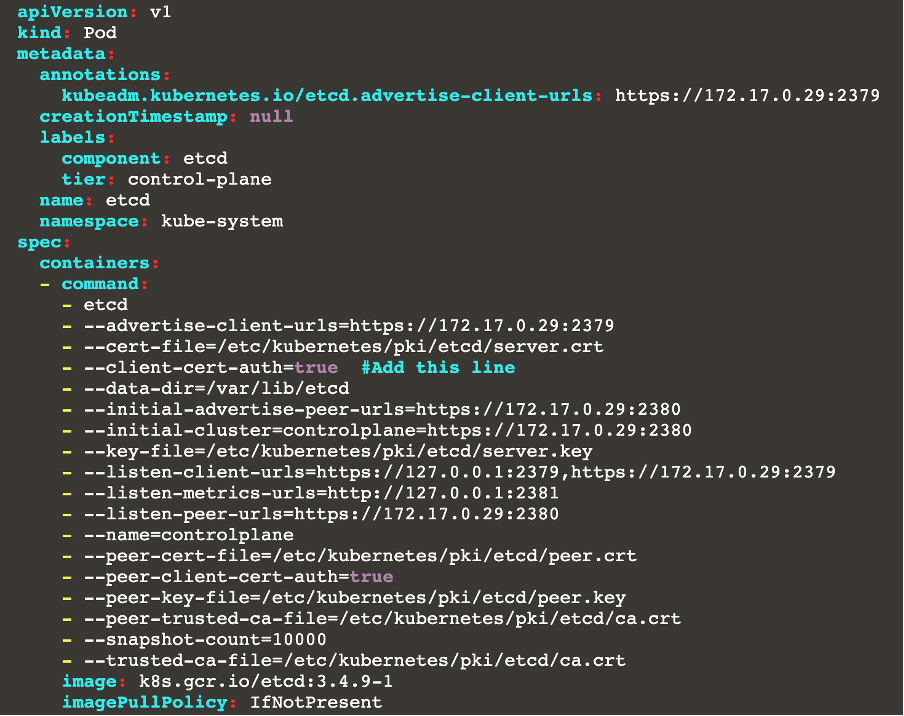

master1 $ vim /etc/kubernetes/manifests/etcd.yaml
- --client-cert-auth=true
Explanation
ssh to worker1
worker1 $ vim /var/lib/kubelet/config.yaml
apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
anonymous:
enabled: true #Delete this
enabled: false #Replace by this
webhook:
cacheTTL: 0s
enabled: true
x509:
clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
mode: AlwaysAllow #Delete this
mode: Webhook #Replace by this
webhook:
cacheAuthorizedTTL: 0s
cacheUnauthorizedTTL: 0s
cgroupDriver: systemd
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
cpuManagerReconcilePeriod: 0s
evictionPressureTransitionPeriod: 0s
fileCheckFrequency: 0s
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 0s
imageMinimumGCAge: 0s
kind: KubeletConfiguration
logging: {}
nodeStatusReportFrequency: 0s
nodeStatusUpdateFrequency: 0s
resolvConf: /run/systemd/resolve/resolv.conf
rotateCertificates: true
runtimeRequestTimeout: 0s
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 0s
syncFrequency: 0s
volumeStatsAggPeriod: 0s
worker1 $ systemctl restart kubelet. # To reload kubelet config
ssh to master1
master1 $ vim /etc/kubernetes/manifests/kube-apiserver.yaml

master1 $ vim /etc/kubernetes/manifests/etcd.yaml

Show Answer

Linux Foundation CKS Quiz:1 Topic:1 Questions:1-5
