Huawei H12-211 Quiz 17 Topic 9 Questions 81-85

Question: 1

The following description about the ICMP redirect function is correct (). (multiple choice)

AAfter the router receives the data packet from an interface and sends the data packet from the interface again, the router will send ICMP.
Redirect the message to the source device.

BAfter the router receives the data packet from an interface, it finds that the IP address of the interface and the destination IP address of the data packet are on the same network segment.
The router will send an ICMP redirect message to the source device.

CAfter the router receives the data packet from an interface and sends the data packet from the interface, the source device will send an ICMP weight.
Direct the message to the router.

DAfter the router receives the data packet from an interface, it finds the source IP address of the data packet and the next hop when the router continues to forward the data packet.
If the IP address belongs to the same network segment, the router will send an ICMP redirect message to the source device.

Show Answer

Question: 2

On the VRP interface, you cannot use the command delete or unreserved vrpcfg.zip to delete files. You must empty them in the recycle bin to thoroughly

Delete Files.

ACorrect

BError

Show Answer

Question: 3

Regarding the role of ARP protocol and packet encapsulation, the description is correct ()

AInverse ARP in ARP is used to resolve device names

BThe MAC address of the destination and the address of the UUID can be obtained through the ARP protocol.

CARP protocol supports deployment on PPP links and HDLC links

DARP protocol is based on Ethernet package

Show Answer

Question: 4

The topology and configuration are as shown in the figure. Then, an Eth Trunk logical link can be established between the two switches. And LSW2 is active end.

q4_H12-211

ACorrect

BError

Show Answer

Question: 5

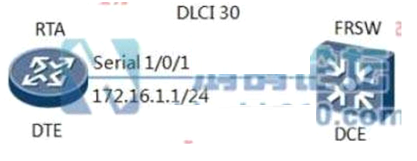

As shown in the figure, RTA is a DTE device connected to a frame relay switch. If RTA uses dynamic mapping to establish a PVC connection, which of the following

These commands do not need to be configured on the RTA? (multiple choice)

q5_H12-211

A[RTA-Serial1/0/1] ip address 172.16.1.124

B[RTA-Serial1/0/1]link-protocol fr

C[RTA-Serial1/0/1]fr interface-type dte

D[RTA-Serial1/0/1]fr inarp

Show Answer

Huawei H12-211 Quiz:17 Topic:9 Questions:81-85
