Huawei H12-211 Quiz 15 Topic 7 Questions 71-75

Question: 1

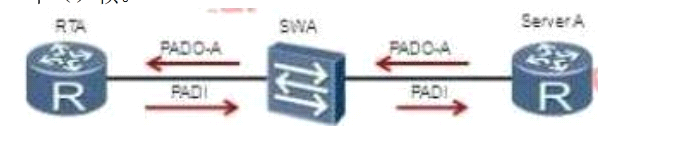

As shown in the figure, RTA sends a PADI message to server A as a PPPOE client, and server A replies to a PADO message. PADO message is One () frame.

q1_H12-211

AUnicast

BMulticast

CBroadcast

DAnycast

Show Answer

Question: 2

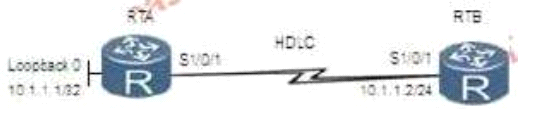

As shown in the figure, the address is configured on the Serial 1/0/1 interface of the RTA using the command "ip address unnumbered interface loopback 0".

Borrowing, the following description is correct (). (multiple choice)

q2_H12-211

AThe IP address of the interface of Serial 1/0/1 of the RTA is 10.1.1.1/24.

BThe IP address of the interface of Serial 1/0/1 of RTA is 10.1.1.1/32.

CThere is a 10.1.1.0/24 routing entry in the RTA routing table.

DThere is no 10.1.1.0/24 routing entry in the RTA routing table.

Show Answer

Question: 3

The following is incorrect about the description of STP () (multiple choice)

AThere can only be one designated switch in a switched network

BAll ports of the root switch are root ports

CAll ports in the root switch are designated ports

DThe switch with the lowest switch priority value in the switched network becomes a non-root switch.

Show Answer

Question: 4

A router learns routes to the same destination address through RIP, OSPF, and static routes. By default, VRP will be the most

Which routing protocol does the terminal choose to learn?

ARIP

BOSPF

CThe routes learned by the three protocols are selected.

DStatic routing

Show Answer

Question: 5

The administrator plans to implement a route backup by configuring a static floating route. The correct implementation method is ().

AThe administrator needs to configure different protocol priority values for the primary static route and the alternate static route.

BThe administrator only needs to configure two static routes.

CThe administrator needs to configure different TAGs for the primary static route and the standby static route.

DThe administrator needs to configure different metrics for the primary static route and the alternate static route.

Show Answer

Huawei H12-211 Quiz:15 Topic:7 Questions:71-75
