Question: 1
After analyzing the network environment, an engineer decides to implement a full separation model for internet access and MPLS L3VPN services. What is the reason for this decision?
Question: 2

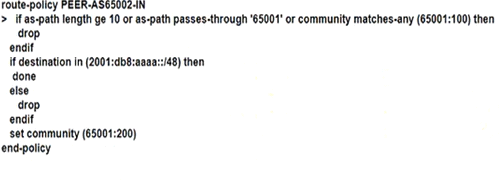

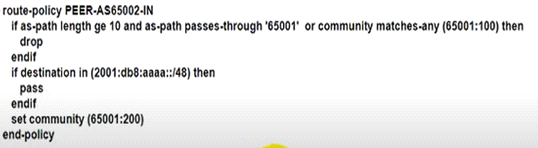

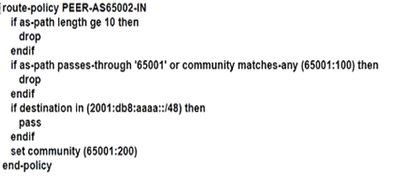

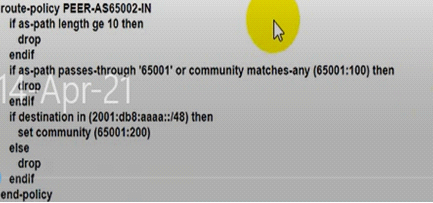

ASN 65001 is peering with ASN 65002 to exchange IPv6 BGP routes. All routes that originate in ASN 65001 have a standard community value of 65001:100, and ASN 65002 is allowed to advertise only 2001 :db8:aaaa::/48. An engineer needs to update the ASN 65001 route-filtering configuration to meet these conditions:
* Looped routes into ASN 65001 and routes that have traversed 10 or more ASNs must be denied.
* Routes accepted into ASN 65001 must be assigned a community value of 65001:200.
Which configuration must the engineer apply to the ASN 65001 border router?
A)
B)
C)
D)
Question: 3

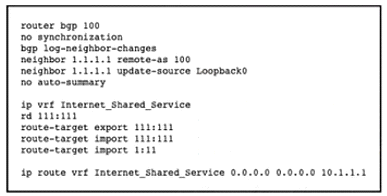

Refer to the exhibit.

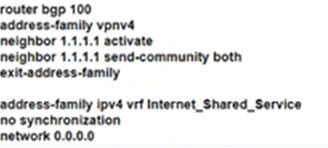

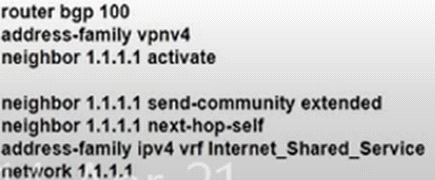

Which additional configuration must an engineer apply to the edge router to inject a default route into the MP-BGP address family for the internet_shared_service dedicated VRF?
A)
B)
C)
D)
Question: 4
An engineer needs to implement QOS mechanism on customer's network as some applications going over the internet are slower than Others. Which two actions must the engineer perform when implementing traffic shaping on the network in order to accomplish this task? (Choose two.)
Question: 5

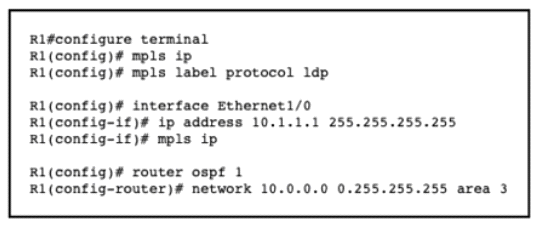

Refer to the exhibit.

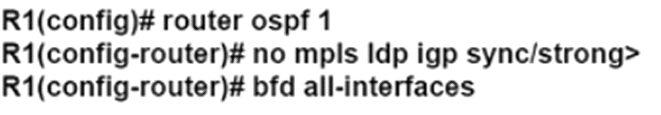

A network engineer is configuring MPLS LDP synchronization on router R1. Which additional configuration must an engineer apply to R1 so that it will synchronize to OSPF process 1?
A)
B)
C)
D)
