Cisco 300-420 Quiz 4 Topic 14 Questions 16-20

Question: 1

q1_300-420

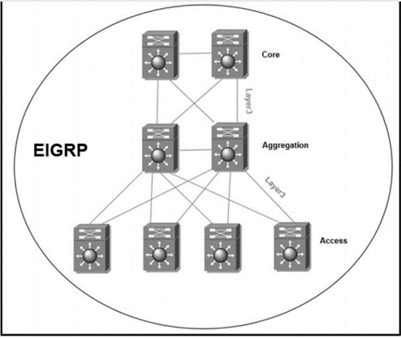

Refer to the exhibit. Where must an architect plan for route summarization for the topology?

Afrom the core toward the aggregation and the access toward the aggregation

Bfrom the core toward the aggregation and the aggregation toward the core

Cfrom the aggregation toward the access and the access toward the aggregation

Dfrom the aggregation toward the core and the aggregation toward the access

Show Answer

Question: 2

q2_300-420

Refer to the exhibit. AS65533 and AS65530 are announcing a partial Internet routing table as well as their IP subnets. An architect must create a design that ensures AS64512 become a transit AS. Which filtering solution must the architect choose?

AMaximum-prefix

BNo-advertise

CNext-hop

DNo Export

Show Answer

Question: 3

q3_300-420

Refer to the exhibit. An architect must design a solution to connect the two ASs. To optimize bandwidth, the design will implement load sharing between router R6 and router R4. Which solution should the design include?

AUse update-source to specify the Loopback interface.

BUse next-hop-serf attributes only for routes that are learned from eBGP peers.

CConfigure the eBGP TTL to support eBGP multihop.

DUse maximum-paths to install multiple paths in the routing table.

Show Answer

Question: 4

q4_300-420

Refer to the exhibit. The full EIGRP routing table is advertised throughout the network. Currently, users experience data loss when any one link in the network fails. An architect optimizes the network to reduce the impact when a link fails. Which solution should the architect include in the design?

ARun BFD on the inter links between EIGRP neighbors.

BSummarize the access layer networks from each access layer switch toward the aggregation layer.

CReduce the default EIGRP hello interval and hold time.

DSummarize the access layer networks from the aggregation layer toward the core layer.

Show Answer

Question: 5

q5_300-420

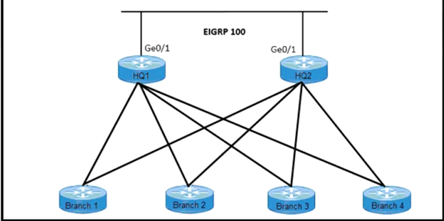

Refer to the exhibit. An architect must create a stable and scalable EIGRP solution for a customer. The design must:

*conserve bandwidth, memory, and CPU processing

*prevent suboptimal routing

*avoid any unnecessary queries

Which two solutions must the architect select? (Choose two.)

Aroute summarization

Bprefix lists

Cdistribute lists

Dstub routing

Estatic redistribution

Show Answer
