Question: 1
Assume the block is in A-State when two evCs ate received.
What is a plausible sequence of behaviors that occurs when a subsequent evG occurs?
A action 1. stop activity X (if running), action 7, action 8, action 5, start activity Y
B stop activity X (if running), action 8, action 5, start activity Y, action 7
C stop activity X (if running) action 8, action 5, start activity Y, action 7, action 7
D stop activity X (if running), action 2, action 8, action 5, start activity Y, action 7, action 7
E stop activity X (if ninning). action 2, action 8, action 5, start activity Y, action 7, action 7, action 6
Answer : A
Show Answer
Hide Answer
Question: 2
Choose the correct answer.

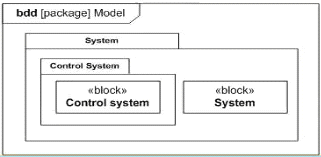

Which diagram shows that the control system block is in the namespace of the system block?
A)
B)
C)
D)
Question: 3
Choose the correct answer.
An engineer is building a model of a system that includes both Low Earth Orbit (LEO) and Geosynchronous Orbit (GEO) satellites.

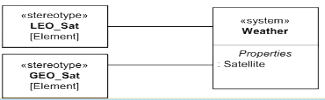

Which diagram fragment shows a well-designed set of domain stereotypes that can be applied to the blocks representing those system elements?
A)
B)
C)
D)
Question: 4
Choose the correct answer.

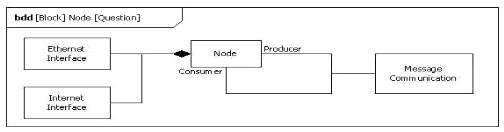

Given the following bdd:
Which Ibd corresponds?

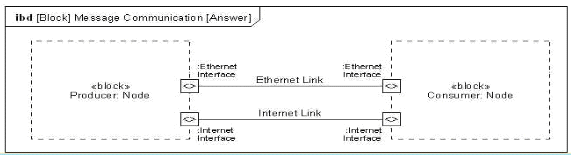

A)

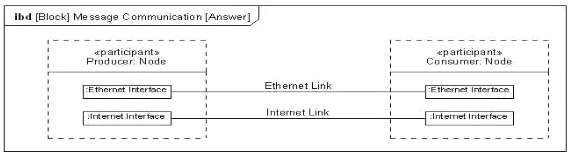

B)

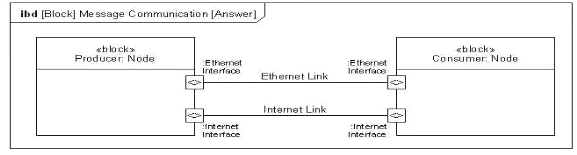

C)

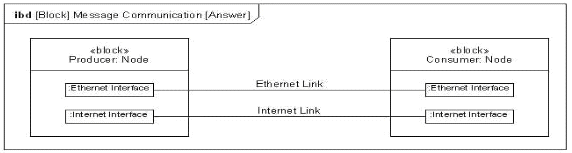

D)
Question: 5
Choose the correct answer.

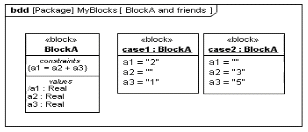

Given the model composed of the following diagram:
The modeler has set all shown values us inputs and next intends to solve the mode that is, to calculate the outputs. Assume nothing relevant has been left out.
What is wrong with this model?
