Nokia 4A0-106 Quiz 2 Topic 6 Questions 6-10

Question: 1

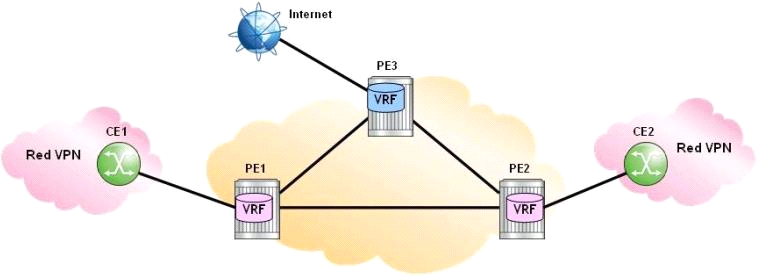

Click the exhibit.

q1_4A0-106

PE3 learns Internet routes via its VRF interface to the Internet peering router and stores them in its Internet VRF. CE1 is connected to the Red VPN and requires Internet access via its Red VRF interface. Which of the following statements do not fulfill this requirement?

APE1 advertises the Red VPN routes and a default route to PE3.

BThe Internet VRF on PE3 imports the Red VPN routes advertised by PE1.

CPE1 imports all Internet routes and advertises them to CE1 via the Red VRF.

DPE3 advertises a default route from its Internet VRF instead of advertising all Internet routes.

Show Answer

Question: 2

The policies shown below from the configuration of an Nokia 7750 SR have been created to implement an Extranet VPRN between the main sites of two separate VPRNs. How should these policies be applied?

Aample Policy should be applied as an export policy on the PE connected to the main site of Customer 1

Bample Policy 3 should be applied as an export policy on the PE connected to the main site of Customer 2

Cample Policy 3 should be applied as an export policy on both PEs connected to the main site of Customer 1 and the main site of Customer 2

Dample Policy should be applied as an export policy on both PEs connected to the main site of Customer 1 and the main site of Customer 2

Eample Policy should be applied as an export policy on all PEs connected to sites of Customer 1

Show Answer

Question: 3

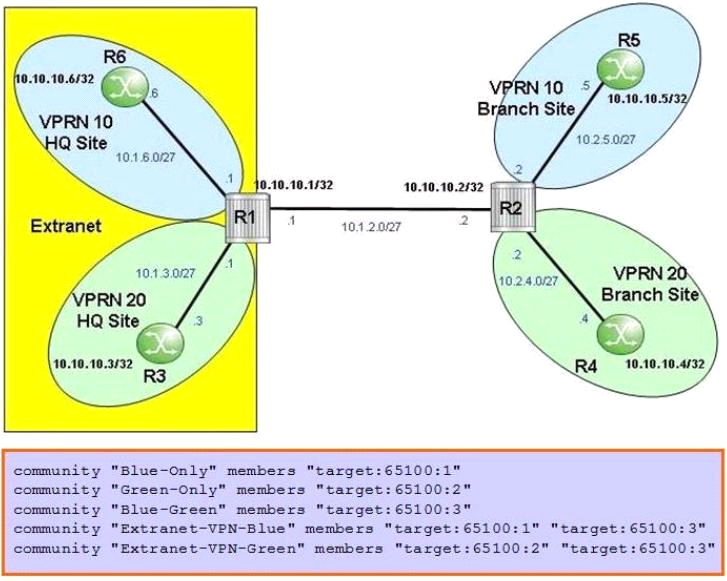

Click the exhibit.

q3_4A0-106

For the extranet VPRN and community lists shown, which of the following communities will be included in the export policy applied to VPRN 20 on router R2?

A'Blue-Only'

B'Blue-Only' and 'Blue-Green'

C'Green-Only'

D'Extranet-VPN-Green'

E'Blue-Green'

Show Answer

Question: 4

Click the exhibit.

q4_4A0-106

For the PE hub and spoke VPRN, on which PE(s) should the VPRN service command target export target: 65100:1 import target: 65100: 2 " be configured?

APE1

BPE2, PE3 and PE4

CPE1, PE2, PE3 and PE4

DThis command is not required for the configuration of this PE hub and spoke VPRN.

Show Answer

Question: 5

Click the exhibit.

q5_4A0-106

The policy shown is configured on an Nokia 7750 SR to implement an extranet VPRN between the main sites of two separate VPRNs. Route target "target:65100:2" is used for Customer 1 routes, and route target "target:65100:3" is used for Extranet routes. How should this policy be applied?

AThe policy should be applied as an import policy on the PE connected to the main site of Customer 1.

BThe policy should be applied as an import policy on all the PEs connected to the sites of Customer 1.

CThe policy should be applied as an export policy on the PE connected to the main site of Customer 1.

DThe policy should be applied as an export policy on all the PEs connected to the sites of Customer 1.

Show Answer
