MuleSoft MCIA-Level-1 Quiz 1 Topic 12 Questions 1-5

Question: 1

An organization is choosing between API-led connectivity and other integration approaches.

According to MuleSoft, which business benefits is associated with an API-led connectivity approach using Anypoint Platform?

Aimproved security through adoption of monolithic architectures

BIncreased developer productivity through sell-service of API assets

CGreater project predictability through tight coupling of systems

DHigher outcome repeatability through centralized development

Show Answer

Question: 2

A leading e-commerce giant will use Mulesoft API's on runtime fabric (RTF) to process customer orders. Some customer's sensitive information such as credit card information is also there as a part of a API payload.

What approach minimizes the risk of matching sensitive data to the original and can convert back to the original value whenever and wherever required?

AApply masking to hide the sensitive information and then use API

Bmanager to detokenize the masking format to return the original value

Ccreate a tokenization format and apply a tokenization policy to the API Gateway

DUsed both masking and tokenization

EApply a field level encryption policy in the API Gateway

Show Answer

Question: 3

A set of integration Mule applications, some of which expose APIs, are being created to enable a new business process. Various stakeholders may be impacted by this. These stakeholders are a combination of semi-technical users (who understand basic integration terminology and concepts such as JSON and XML) and technically skilled potential consumers of the Mule applications and APIs.

What Is an effective way for the project team responsible for the Mule applications and APIs being built to communicate with these stakeholders using Anypoint Platform and its supplied toolset?

AUse Anypoint Design Center to implement the Mule applications and APIs and give the various stakeholders access to these Design Center projects, so they can collaborate and provide feedback

BCreate Anypoint Exchange entries with pages elaborating the integration design, including API notebooks (where applicable) to help the stakeholders understand and interact with the Mule applications and APIs at various levels of technical depth

CUse Anypoint Exchange to register the various Mule applications and APIs and share the RAML definitions with the stakeholders, so they can be discovered

DCapture documentation about the Mule applications and APIs inline within the Mule integration flows and use Anypoint Studio's Export Documentation feature to provide an HTML version of this documentation to the stakeholders

Show Answer

Question: 4

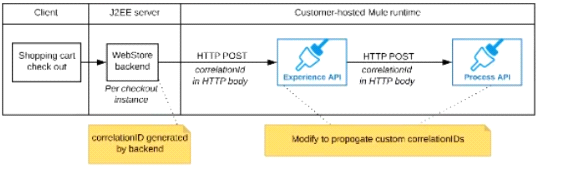

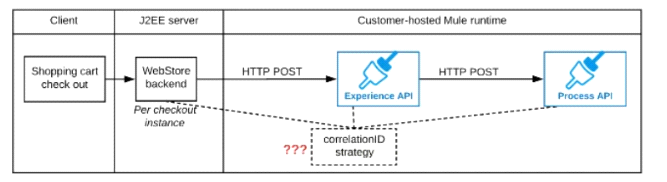

Refer to the exhibit.

q4_MCIA-Level-1

A shopping cart checkout process consists of a web store backend sending a sequence of API invocations to an Experience API, which in turn invokes a Process API. All API invocations are over HTTPS POST. The Java web store backend executes in a Java EE application server, while all API implementations are Mule applications executing in a customer -hosted Mule runtime.

End-to-end correlation of all HTTP requests and responses belonging to each individual checkout Instance is required. This is to be done through a common correlation ID, so that all log entries written by the web store backend, Experience API implementation, and Process API implementation include the same correlation ID for all requests and responses belonging to the same checkout instance.

What is the most efficient way (using the least amount of custom coding or configuration) for the web store backend and the implementations of the Experience API and Process API to participate in end-to-end correlation of the API invocations for each checkout instance?

AThe web store backend, being a Java EE application, automatically makes use of the thread-local correlation ID generated by the Java EE application server and automatically transmits that to the Experience API using HTTP-standard headers
No special code or configuration is included in the web store backend, Experience API, and Process API implementations to generate and manage the correlation ID

BThe web store backend generates a new correlation ID value at the start of checkout and sets it on the X-CORRELATlON-lt HTTP request header In each API invocation belonging to that checkout
No special code or configuration is included in the Experience API and Process API implementations to generate and manage the correlation ID

CThe Experience API implementation generates a correlation ID for each incoming HTTP request and passes it to the web store backend in the HTTP response, which includes it in all subsequent API invocations to the Experience API.
The Experience API implementation must be coded to also propagate the correlation ID to the Process API in a suitable HTTP request header

DThe web store backend sends a correlation ID value in the HTTP request body In the way required by the Experience API
The Experience API and Process API implementations must be coded to receive the custom correlation ID In the HTTP requests and propagate It in suitable HTTP request headers

Show Answer

Question: 5

A popular retailer is designing a public API for its numerous business partners. Each business partner will invoke the API at the URL 58. https://api.acme.com/partnefs/vl. The API implementation is estimated to require deployment to 5 CloudHub workers.

The retailer has obtained a public X.509 certificate for the name apl.acme.com, signed by a reputable CA, to be used as the server certificate.

Where and how should the X.509 certificate and Mule applications be used to configure load balancing among the 5 CloudHub workers, and what DNS entries should be configured in order for the retailer to support its numerous business partners?

AAdd the X.509 certificate to the Mule application's deployable archive, then configure a CloudHub Dedicated Load Balancer (DLB) for each of the Mule application's CloudHub workers
Create a CNAME for api.acme.com pointing to the DLB's A record

BAdd the X.509 certificate to the CloudHub Shared Load Balancer (SLB), not to the Mule application
Create a CNAME for api.acme.com pointing to the SLB's A record

CAdd the X.509 certificate to a CloudHub Dedicated Load Balancer (DLB), not to the Mule application
Create a CNAME for api.acme.com pointing to the DLB's A record

DAdd the x.509 certificate to the Mule application's deployable archive, then configure the CloudHub Shared Load Balancer (SLB)
for each of the Mule application's CloudHub workers
Create a CNAME for api.acme.com pointing to the SLB's A record

Show Answer

MuleSoft MCIA-Level-1 Quiz:1 Topic:12 Questions:1-5
