Linux Foundation CKAD Quiz 17 Topic 1 Questions 81-85

Question: 1

Refer to Exhibit.

q1_CKAD

Context

You have been tasked with scaling an existing deployment for availability, and creating a service to expose the deployment within your infrastructure.

Task

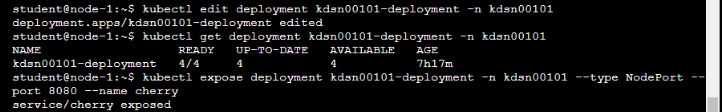

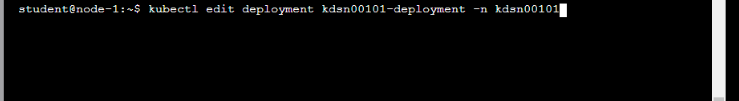

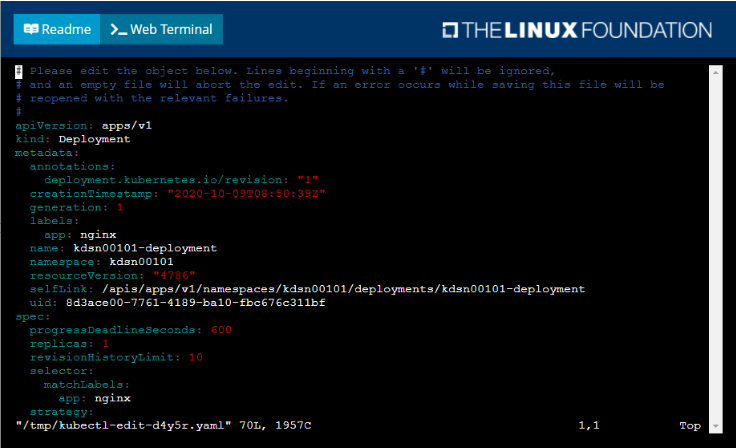

Start with the deployment named kdsn00101-deployment which has already been deployed to the namespace kdsn00101 . Edit it to:

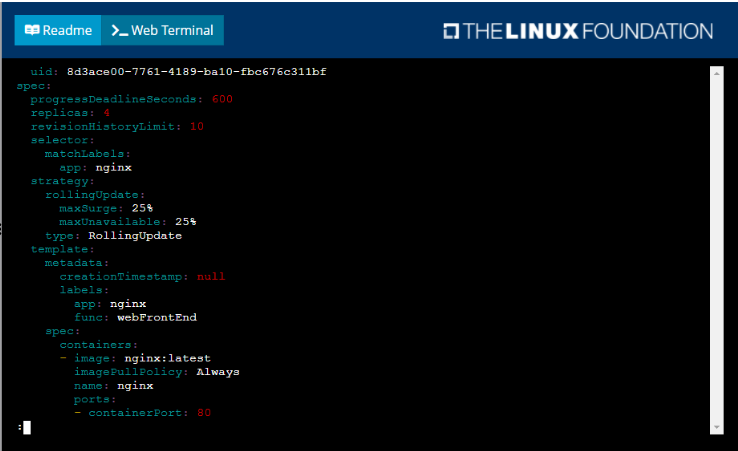

* Add the func=webFrontEnd key/value label to the pod template metadata to identify the pod for the service definition

* Have 4 replicas

Next, create ana deploy in namespace kdsn00l01 a service that accomplishes the following:

* Exposes the service on TCP port 8080

* is mapped to me pods defined by the specification of kdsn00l01-deployment

* Is of type NodePort

* Has a name of cherry

AExplanation:
Solution:

Show Answer

Question: 2

Refer to Exhibit.

q2_CKAD

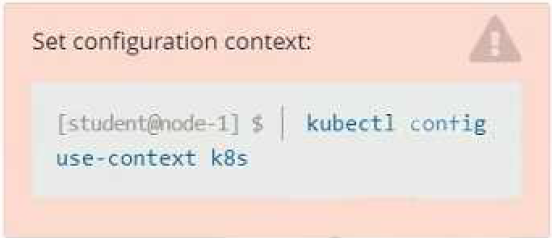

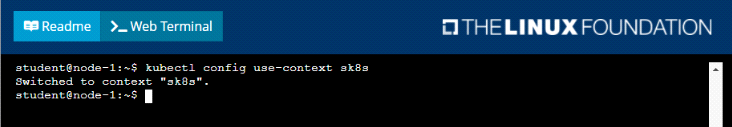

Set Configuration Context:

[student@node-1] $ | kubectl

Config use-context k8s

Task

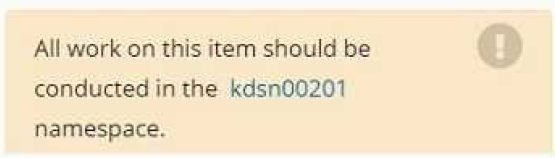

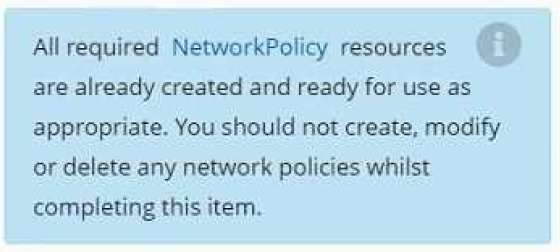

You have rolled out a new pod to your infrastructure and now you need to allow it to communicate with the web and storage pods but nothing else. Given the running pod kdsn00201 -newpod edit it to use a network policy that will allow it to send and receive traffic only to and from the web and storage pods.

q2_CKAD

AExplanation:
To allow a pod to send and receive traffic only to and from specific pods, you can use network policies in Kubernetes.
First, you will need to create a network policy that defines the allowed traffic. You can create a network policy yaml file with the following rules:
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
name: newpod-network-policy
namespace: default
spec:
podSelector:
matchLabels:
app: kdsn00201-newpod
ingress:
- from:
- podSelector:
matchLabels:
app: web
- podSelector:
matchLabels:
app: storage
This policy will only allow incoming traffic to the pod with the label app=kdsn00201-newpod from pods with the label app=web or app=storage. If you have different labels on your web and storage pods please update the matchLabels accordingly.
Once you have created the network policy, you can apply it to the cluster by running the following command:
kubectl apply -f <network-policy-file>.yaml
This will apply the network policy to the cluster, and the newpod will only be able to send and receive traffic to and from the web and storage pods.
Please note that, NetworkPolicy resource is not available by default, you need to enable the NetworkPolicy feature on your Kubernetes cluster. This feature is enabled by default on some clusters and must be explicitly enabled on others. You can check if NetworkPolicy is available by running the command kubectl api-versions | grep networking
Also, you need to ensure that the pods that you want to allow traffic to and from are running on the same namespace.

Show Answer

Question: 3

Refer to Exhibit.

q3_CKAD

Task:

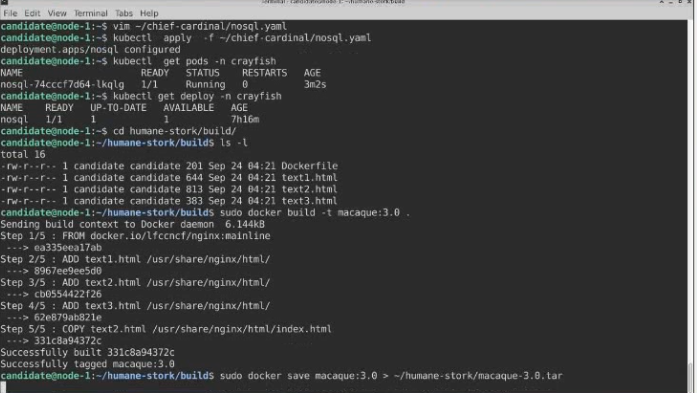

A Dockerfile has been prepared at -/human-stork/build/Dockerfile

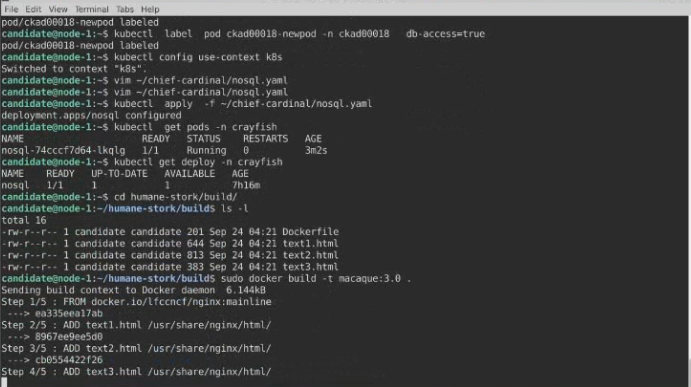

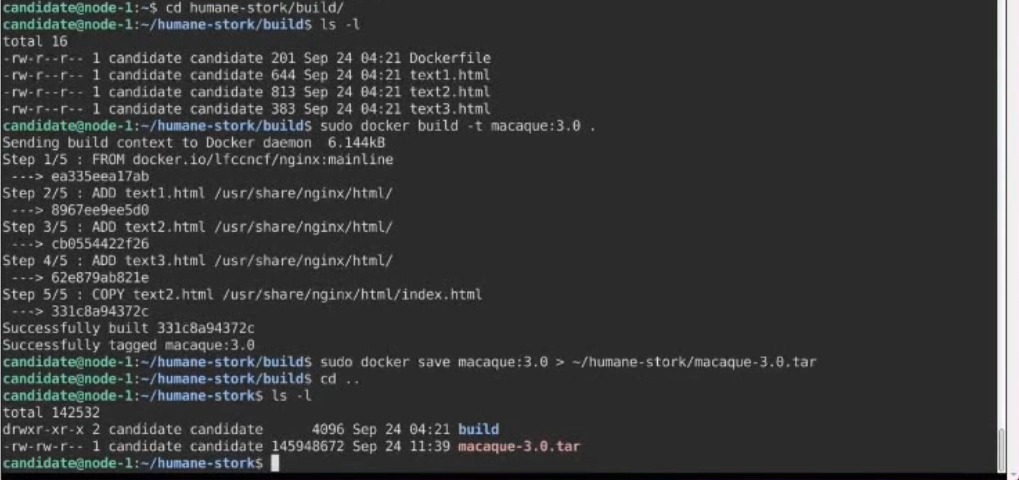

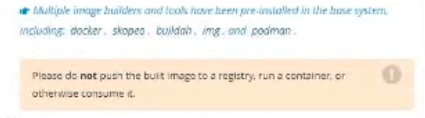

1) Using the prepared Dockerfile, build a container image with the name macque and lag 3.0. You may install and use the tool of your choice.

q3_CKAD

2) Using the tool of your choice export the built container image in OC-format and store it at -/human stork/macque 3.0 tar

AExplanation:
Solution:

Show Answer

Question: 4

Exhibit:

q4_CKAD

Given a container that writes a log file in format A and a container that converts log files from format A to format B, create a deployment that runs both containers such that the log files from the first container are converted by the second container, emitting logs in format B.

Task:

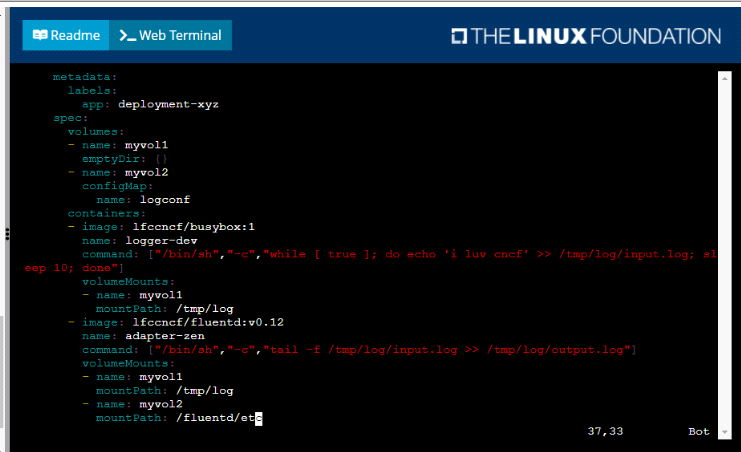

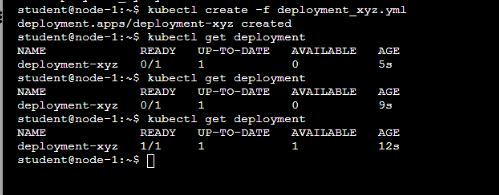

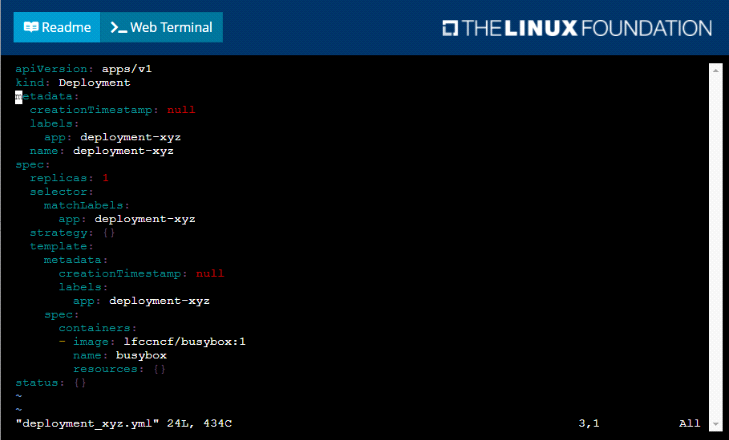

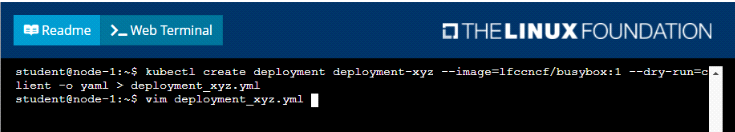

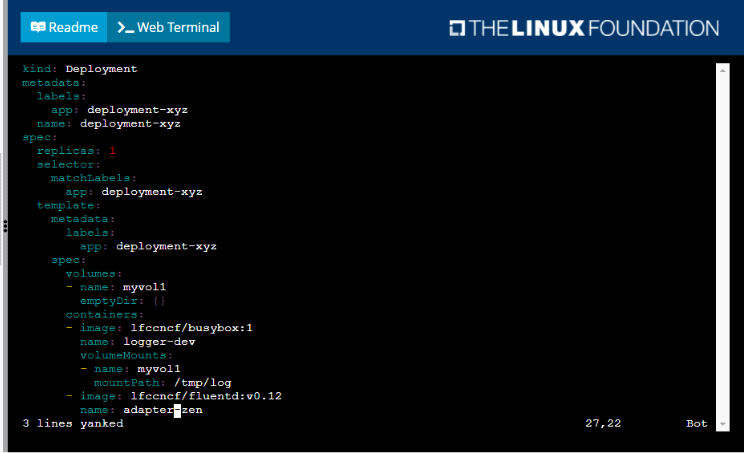

* Create a deployment named deployment-xyz in the default namespace, that:

* Includes a primary

lfccncf/busybox:1 container, named logger-dev

* includes a sidecar Ifccncf/fluentd:v0.12 container, named adapter-zen

* Mounts a shared volume /tmp/log on both containers, which does not persist when the pod is deleted

* Instructs the logger-dev

container to run the command

q4_CKAD

which should output logs to /tmp/log/input.log in plain text format, with example values:

q4_CKAD

* The adapter-zen sidecar container should read /tmp/log/input.log and output the data to /tmp/log/output.* in Fluentd JSON format. Note that no knowledge of Fluentd is required to complete this task: all you will need to achieve this is to create the ConfigMap from the spec file provided at /opt/KDMC00102/fluentd-configma p.yaml , and mount that ConfigMap to /fluentd/etc in the adapter-zen sidecar container

ASolution:

BSolution:

Show Answer

Question: 5

Exhibit:

q5_CKAD

Context

A project that you are working on has a requirement for persistent data to be available.

Task

To facilitate this, perform the following tasks:

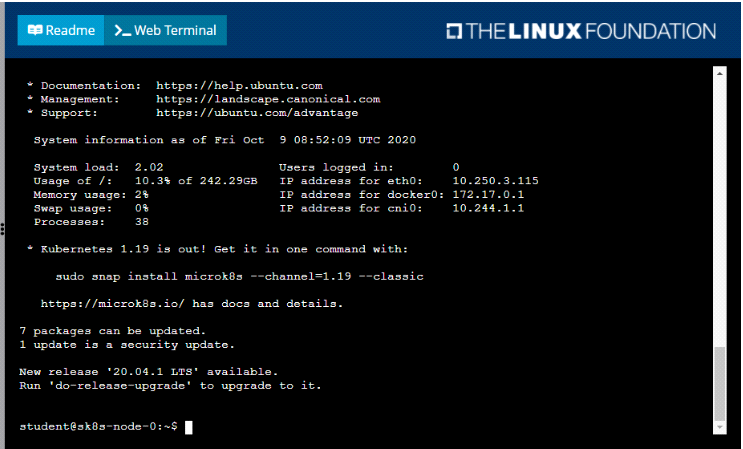

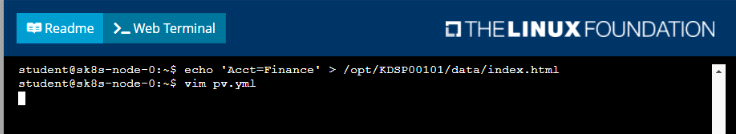

* Create a file on node sk8s-node-0 at /opt/KDSP00101/data/index.html with the content Acct=Finance

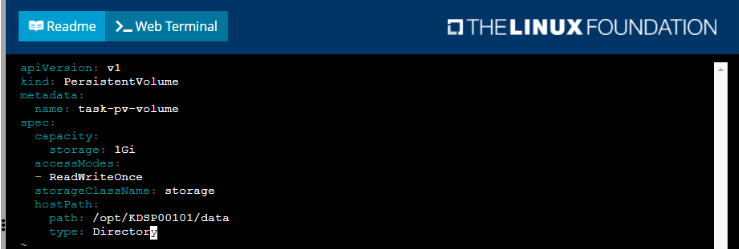

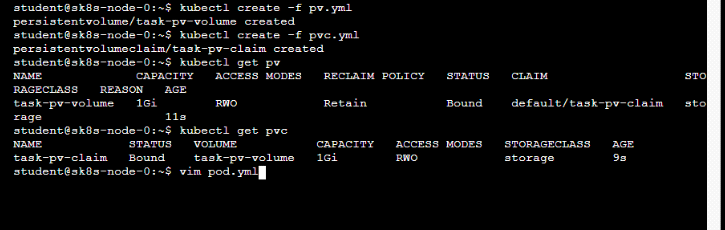

* Create a PersistentVolume named task-pv-volume using hostPath and allocate 1Gi to it, specifying that the volume is at /opt/KDSP00101/data on the cluster's node. The configuration should specify the access mode of ReadWriteOnce . It should define the StorageClass name exam for the PersistentVolume , which will be used to bind PersistentVolumeClaim requests to this PersistenetVolume.

* Create a PefsissentVolumeClaim named task-pv-claim that requests a volume of at least 100Mi and specifies an access mode of ReadWriteOnce

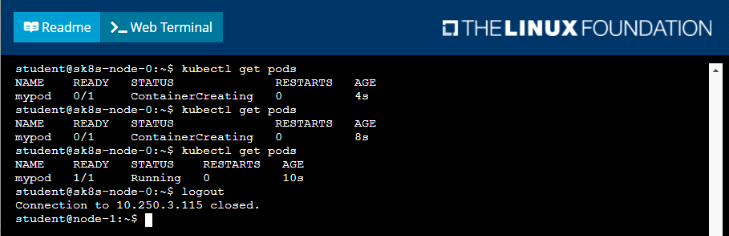

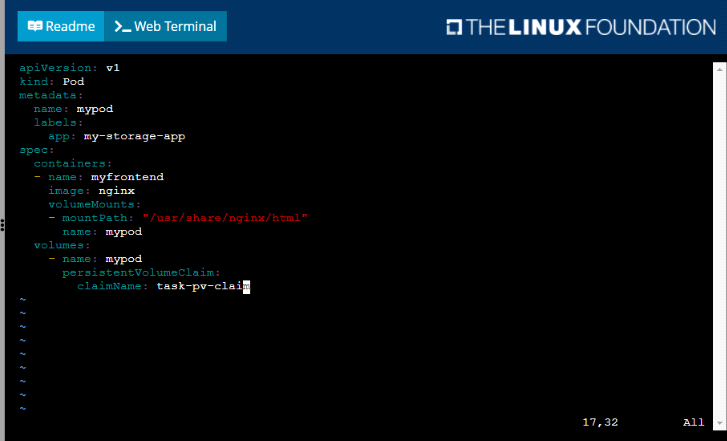

* Create a pod that uses the PersistentVolmeClaim as a volume with a label app: my-storage-app mounting the resulting volume to a mountPath /usr/share/nginx/html inside the pod

q5_CKAD

ASolution:

BSolution:

Show Answer
