Huawei H12-211 Quiz 53 Topic 2 Questions 261-265

Question: 1

As shown in the figure, the network administrator wants to manually aggregate the two physical links between the SWA and the SWB into an Eth-Trunk link.

The correct one is ().

q1_H12-211

AIt works normally after aggregation

BIt can be aggregated. Only GE port can be used after aggregation.

CCan be aggregated, only Ethernet port can be used after aggregation

DCannot be aggregated

Show Answer

Question: 2

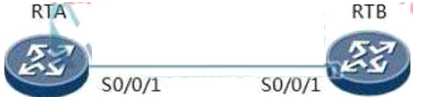

As shown in the figure, the administrator configured the following command on the RTA, and the correct description is (). (multiple choice)

q2_H12-211

[RTA-Serial0/0/1] rip output

[RTA-rip-1]silent-interface s0/0/1

ARTA can still learn the routing information published by RTB.

BRTB can still learn the routing information published by RTB.

CRTA neighbor information does not include RTB

DRTB neighbor information does not include RTA

Show Answer

Question: 3

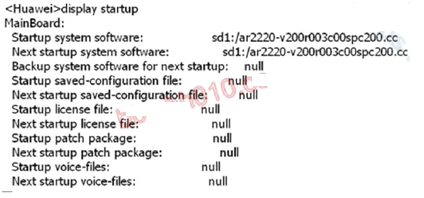

The above is the display startup information of the AR2200 router. For this information, the error is ().

q3_H12-211

AThe running configuration file is not saved

BWhen the device starts using the system file, ar2220-v200r003c00spc200.cc

CThe system file cannot be modified when the device starts next time.

DThe system file of the next startup of the device can be modified by using the command 'startup system software<startup-software-name>.cc'.

Show Answer

Question: 4

The following static route configuration is correct (). (multiple choice)

Aip route-static 129.1.0.0 16 serial 0

Bip route-static 10.0.0.2 16 129.1.0.0

Cip route-static 129.1.0.0 16 10.0.0.2

Dip route-static 129.1.0.0 255.255.0.0 10.0.0.2

Show Answer

Question: 5

A switch receives a data frame with a VLAN tag, but finds that the MAC address of the data frame cannot be queried in its MAC address table.

Then the processing behavior of the data frame by the switch is ().

AThe switch broadcasts the data frame to all ports.

BThe switch broadcasts this data frame to all ports (except the receiving port) in the VLAN that belongs to the data frame.

CThe switch broadcasts this data frame to all access ports.

DThe switch will discard this data frame

Show Answer
