Citrix 1Y0-403 Quiz 3 Topic 9 Questions 11-15

Question: 1

Scenario: An automobile manufacturer in Germany has deployed a Citrix Virtual Apps and Desktops solution for its employees using Citrix Cloud and uses a resource location in Germany. Recently, they acquired an automobile manufacturer in Japan. Since then, users from Japan have reported issues regarding slowness and degraded performance of the application hosted in the German resource location.

How can a Citrix Architect improve the performance of the application for users in Japan?

AImplement Optimal Gateway Routing within the existing resource location.

BCreate a new Site for Japan within Germany's resource location

CProvision new resources in Japan's resource location

DImplement Global Server Load Balancing (GSLB)
https://docs.citrix.com/en-us/citrix-cloud/citrix-cloud-resource-locations/resource-locations.html#example-of-a-resource-location-deployment

Show Answer

Question: 2

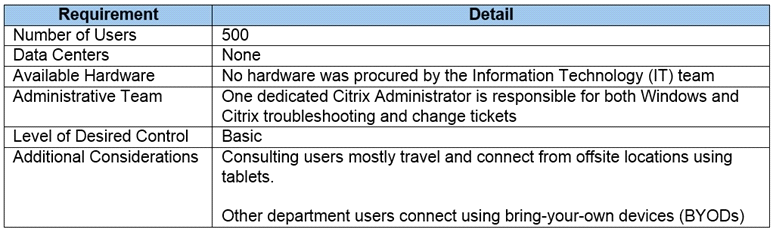

Scenario: A Citrix Architect is creating a conceptual architecture for a Citrix Virtual Apps and Desktops environment. Based on some initial discussions around the company's business goals and objectives, the architect collected the information shown in the exhibit.

Click the Exhibit button to view the information.

q2_1Y0-403

Which delivery model should the architect recommend?

ASingle-Site in Citrix Cloud, with resources hosted in public cloud

BSingle-Site, single-zone, and single on-premises data center

CMulti-Site, and single on-premises data center

DMulti-Site in Citrix Cloud, with resources hosted in public cloud

Show Answer

Question: 3

Scenario: A Citrix Architect is designing a Citrix Virtual Desktops environment. The Graphic Editors Group uses a graphic-intensive and media-rich application. Graphic editors will be provided with a Windows Server 2016 Desktop with NVIDIA graphics hardware acceleration. HDX 3D Pro and Server VDI options were selected during the command-line installation of the Virtual Delivery Agent (VDA).

Which limitation will affect the Graphic Editors Group?

AEach virtual desktop requires a dedicated NVIDIA graphics card.

BSupport is available only for a single user session per VDA.

CThe Browser Content Redirection feature is NOT available.

DSupport is limited to the Thinwire graphics protocol.
'Use the Server VDI (Virtual Desktop Infrastructure) feature to deliver a desktop from a server operating system for a single user.' https://docs.citrix.com/en-us/citrix-virtual-apps-desktops/install-configure/server-vdi.html

Show Answer

Question: 4

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. While performing the capabilities assessment for the existing infrastructure, the architect discovered substantial issues with packet loss and latency, and no current Quality-of-Service (QoS) technology is in place to manage these issues.

Which capability risk will the architect need to investigate to address these issues?

AAccess infrastructure

BDisaster recovery (DR) plan and implementation

CNetwork architecture

DWindows Server and Active Directory (AD) environments

Show Answer

Question: 5

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. Currently, the environment is configured as 2 locations with identical Citrix Virtual Desktops Sites. Each Site has 2 Delivery Controllers, 2 StoreFront servers, and 1 Citrix ADC high-availability pair. The same applications have been published from both Sites for all users. Two zones (Zone A and Zone B) are configured in each Site with 1 Delivery Controller in each zone. The Microsoft Exchange server is only accessible from Virtual Delivery Agent (VDA) machines in Zone A in each Site.

Six access requirements have been identified:

* Users should have a single URL when accessing resources from different Sites.

* Users should always connect to the data center closest to their location.

* Applications added to Favorites within the Citrix Workspace app should be retained when accessed from different Sites.

* Launched applications and desktops should always connect through a local Citrix ADC.

* No duplication of applications published from different Sites.

* Microsoft Outlook should always launch in Zone A.

What should the architect recommend configuring subscription synchronization to retain applications added to Favorites?

AWithin server groups of each Site

BBetween stores across the Sites

CBetween server groups across the Sites

DWithin stores of each Site

Show Answer

Citrix 1Y0-403 Quiz:3 Topic:9 Questions:11-15
