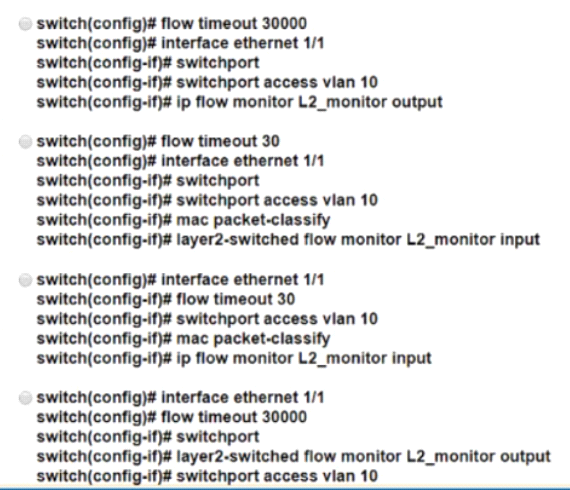

Question: 1
Refer to the exhibit. VLAN 10 Is experiencing delays and packet drops when the traffic is forwarded through the switch. The destination flow analyzer accepts traffic captures of not more than 30 seconds. Which configuration implements the traffic capture that meets the requirements?

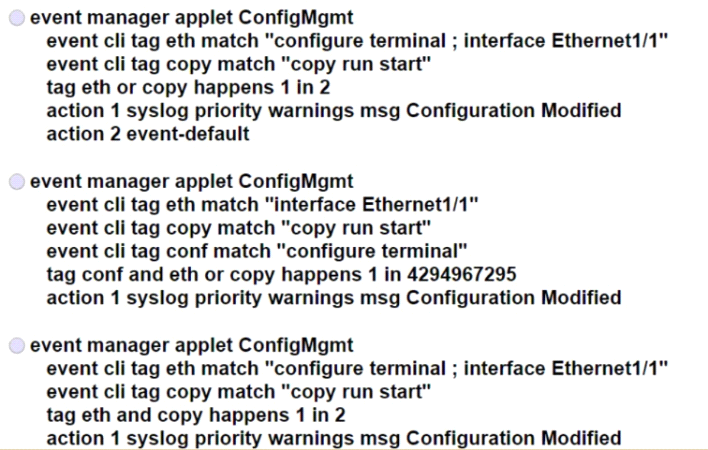

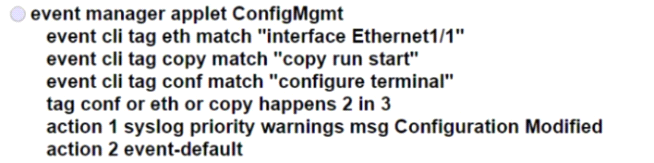

Question: 2
Refer to the exhibit. An engineer logs all occurrences of a configuration being saved. The engineer must generate an additional log message when someone attempts to change the configuration for interface Ethernet 1/1. Which set of commands must be used to meet these requirements?
Question: 3
Refer to the exhibit. Which feature set must be used to configure on switch 2 to establish a VSAN trunk between switch 1 and switch 2?
Question: 4
Refer to the exhibit. Software downgrade is required on a Cisco Nexus 7000 Series Switch. What is displayed when this command is executed?

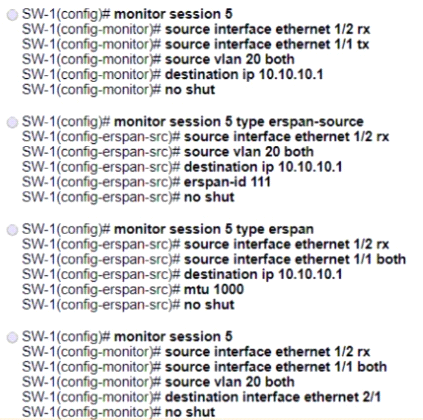

Question: 5
Refer to the exhibit. An engineer monitors ingress traffic from Host-A and all traffic for VLAN 20 from Host-B Which configuration must be implemented to monitor and export traffic to Network Analyzer?
