Cisco 350-401 Quiz 13 Topic 17 Questions 61-65

Question: 1

Which technology is used to provide Layer 2 and Layer 3 logical networks in the Cisco SD-Access architecture?

Aunderlay network

BVPN routing/forwarding

Ceasy virtual network

Doverlay network

Show Answer

Question: 2

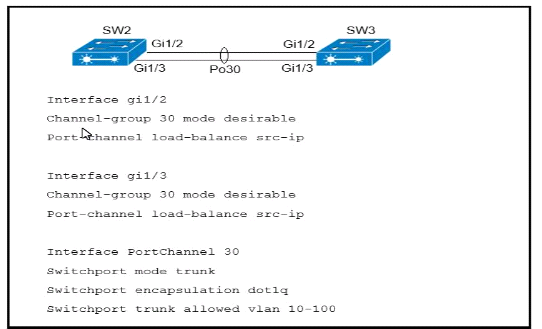

Refer to the exhibit.

q2_350-401

A port channel is configured between SW2 and SW3. SW2 is not running a Cisco operating system. When all physical connections are mode, the port channel does not establish. Based on the configuration excerpt of SW3, what is the cause of the problem?

AThe port channel on SW2 is using an incompatible protocol.

BThe port-channel trunk is not allowing the native VLAN.

CThe port-channel should be set to auto.

DThe port-channel interface lead balance should be set to src-mac

Show Answer

Question: 3

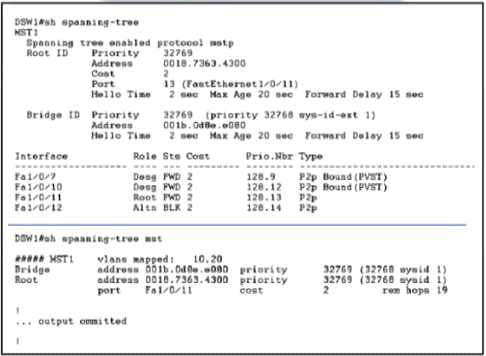

Refer to the exhibit.

q3_350-401

Which two commands ensure that DSW1 becomes root bridge for VLAN 10 and 20?

Aspanning-tree mst 1 priority 1

Bspanning-tree mst 1 root primary

Cspanning-tree mstp vlan 10,20 root primary

Dspanning-tree mst vlan 10,20 priority root

Espanning-tree mst 1 priority 4096

Show Answer

Question: 4

What mechanism does PIM use to forward multicast traffic?

APIM sparse mode uses a pull model to deliver multicast traffic.

BPIM dense mode uses a pull model to deliver multicast traffic.

CPIM sparse mode uses receivers to register with the RP.

DPIM sparse mode uses a flood and prune model to deliver multicast traffic.

Show Answer

Question: 5

What is calculated using the numerical values of the transmitter power level, cable loss, and antenna gain?

AEIRP

BdBi

CRSSI

DSNR

Show Answer

Cisco 350-401 Quiz:13 Topic:17 Questions:61-65
