Cisco 350-401 Quiz 3 Topic 14 Questions 11-15

Question: 1

Refer to the exhibit.

--Image Miss--

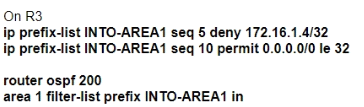

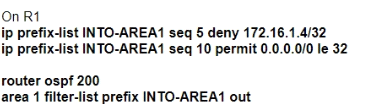

An engineer must create a configuration that prevents R3from receiving the LSA about 172.16.1.4/32.Which configuration set achieves this goal?

A)

q1_350-401

B)

q1_350-401

C)

q1_350-401

AOption A

BOption B

COption C

DOption D

Show Answer

Question: 2

Refer to the exhibit

q2_350-401

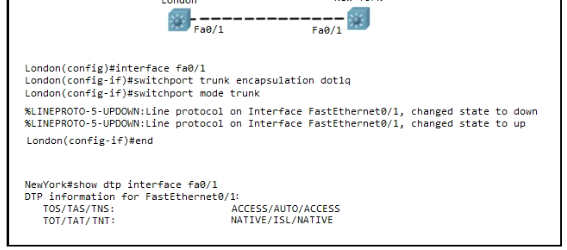

Communication between London and New York is down Which command set must be applied to resolve this issue?

A)

q2_350-401

B)

q2_350-401

C)

q2_350-401

D)

q2_350-401

AOption A

BOption B

COption C

DOption D

Show Answer

Question: 3

Refer to the exhibit.

q3_350-401

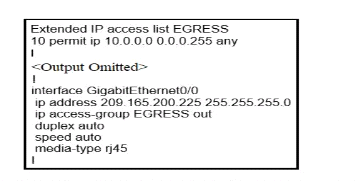

An engineer must block all traffic from a router to its directly connected subnet 209.165.200.0/24. The engineer applies access control list EGRESS in the outbound direction on the GigabitEthernet0/0 interface of the router However, the router can still ping hosts on the 209.165.200.0/24 subnet. Which explanation of this behavior is true?

AAccess control lists that are applied outbound to a router interface do not affect traffic that is sourced from the router.

BOnly standard access control lists can block traffic from a source IP address.

CAfter an access control list is applied to an interface, that interface must be shut and no shut for the access control list to take effect.

DThe access control list must contain an explicit deny to block traffic from the router.

Show Answer

Question: 4

Refer to the exhibit.

q4_350-401

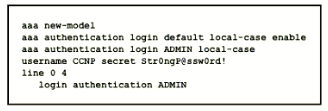

An engineer must create a configuration that executes the show run command and then terminates the session when user CCNP legs in. Which configuration change is required''

AAdd the access-class keyword to the username command

BAdd the access-class keyword to the aaa authentication command

CAdd the autocommand keyword to the username command

DAdd the autocommand keyword to the aaa authentication command

Show Answer

Question: 5

Which command must be applied to R2 for an OSPF neighborship to form?

Anetwork 20.1.1.2.0.0.0.0 area 0

Bnetwork 20.1.1.2 255.255.0.0. area 0

Cnetwork 20.1.1.2.0.0.255.255 area 0

Dnetwork 20.1.1.2 255.255.255 area 0

Show Answer

Cisco 350-401 Quiz:3 Topic:14 Questions:11-15
