Question: 1
A company has an existing Cisco 5520 HA cluster using SSO. An engineer deploys a new single Cisco Catalyst 9800 WLC to test new features. The engineer successfully configures a mobility tunnel between the 5520 cluster and 9800 WLC. Clients connected to the corporate WLAN roam seamlessly between access points on the 5520 and 9800 WLC. After a failure on the primary 5520 WLC, all WLAN services remain functional; however clients cannot roam between the 5520 and 9800 controllers without dropping their connection. Which feature must be configured to remedy the issue?
Question: 2
Question: 2

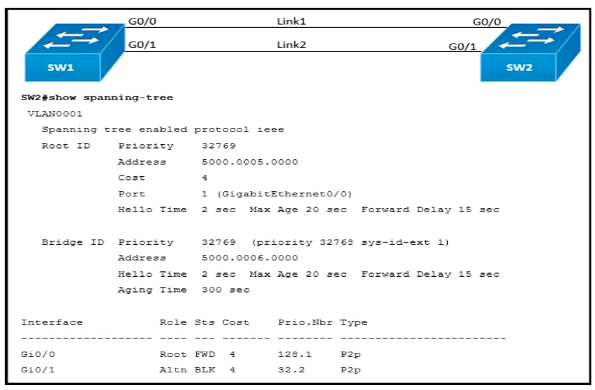

Refer to the exhibit.
Link1 is a copper connection and Link2 is a fiber connection. The fiber port must be the primary port for all forwarding. The output of the show spanning-tree command on SW2 shows that the fiber port is blocked by spanning tree. An engineer enters the spanning- tree port-priority 32 command on GO/1 on SW2, but the port remains blocked. Which command should be entered on the ports that are connected to Link2 to resolve the issue?
Question: 3

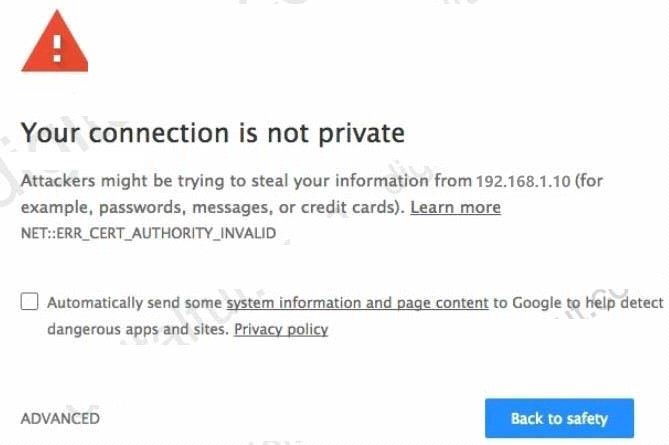

Refer to the exhibit.
configuration. During the testing phase, the engineer receives a warning when displaying the guest
portal. Which issue is occurring?
Question: 4

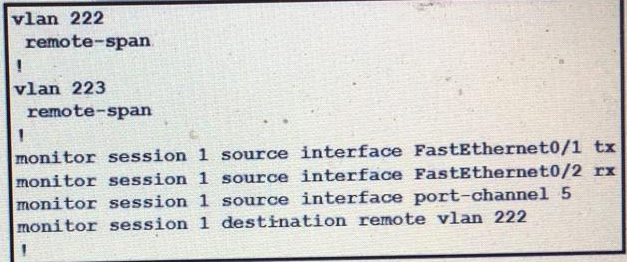

Refer to the exhibit.
What happens to access interfaces where VLAN 222 is assigned?
Question: 5
A customer requests a network design that supports these requirements:
* FHRP redundancy
* multivendor router environment
* IPv4 and IPv6 hosts
Which protocol does the design include?
