Cisco 300-810 Quiz 3 Topic 1 Questions 11-15

Question: 1

A collaboration engineer is configuring SIP interdomain federation for Cisco IM and Presence. The external domain cannot be discovered using DNS SRV. If the external enterprise domain is ciscocollab.com, what destination pattem should the engineer use for a static route?

Acom.ciscocollab.*

B_sipfederationtls._tcp.ciscocollab.com

C*.ciscocollab.com,*

D.ciscocollab.com

Show Answer

Question: 2

An administrator is setting up the Cisco Unified IM and Presence on-premises high availability feature and wants the Server Recovery Manager to initiate failover after 90 seconds. However, failover is happening after 60 seconds. How is this issue corrected?

AChange peer Heartbeat Timeout to 90 seconds.

BChange Keep Alive (Heartbeat) Interval to 90 seconds.

CChange critical service delay to 90 seconds.

DChange Keep Alive (Heartbeat) Timeout to 90 seconds.

Show Answer

Question: 3

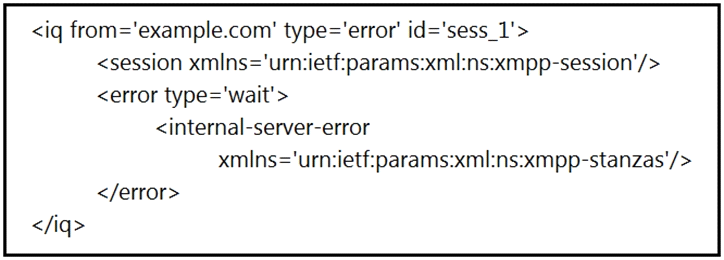

Refer to the exhibit.

q3_300-810

User A tries to log in to the Cisco Jabber client, the login works fine, but the user cannot see their self-presence or other users' presence in their contact list. The administrator checks the Cisco IM and Presence Server logs and sees an issue. What is the issue, and how does it get resolved?

AThe user credentials are incorrect; ask the user to change the credentials.

BThe user is duplicated in another Cisco IM and Presence cluster; unassign the user from the duplicate IM and Presence cluster.

CPresence has stopped working for the user; unassign and reassign the end-user to Cisco IM and Presence.

DThe Cisco IM and Presence Server has CPU/memory issues; restart the IM and Presence Server.

Show Answer

Question: 4

An engineer is configuring a Cisco Voicemail Organization. How many links will be configured between two Cisco Unity Connection clusters?

Aone

Btwo

Cthree

Dfour

Show Answer

Question: 5

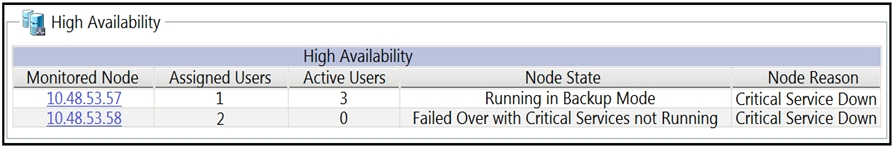

Refer to the exhibit.

q5_300-810

An engineer is troubleshooting operational performance in the network. Which action should be taken to restore high availability in this subcluster?

AGo to 'Presence Redundancy Group Configuration' on the Cisco UCM Administration page and select the Fallback button.

BGo to 'Presence User Assignment' on the Cisco UCM Administration page and select 'rebalance users' for all users.

CStart all critical services on the second node, and select the Fallback button in the 'Presence Redundancy
Group Configuration'.

DStart all critical services on both nodes and select 'rebalance users' in the 'Presence User Assignment'.

Show Answer

Cisco 300-810 Quiz:3 Topic:1 Questions:11-15
