Cisco 300-625 Quiz 2 Topic 4 Questions 6-10

Question: 1

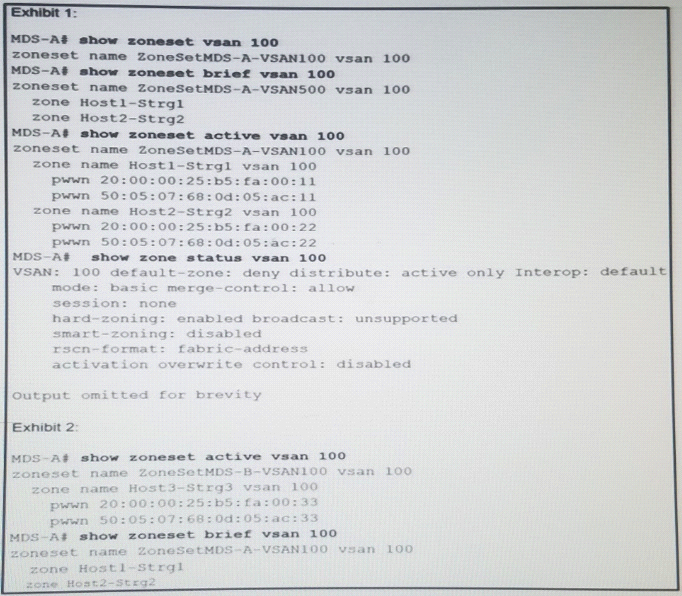

Refer to the exhibit.

q1_300-625

Refer to the exhibits A storage network engineer activates a zoneset on MDS-A and verifies the successful activation (Exhibit 1) The engineer is then notified that there is a SAN outage (Exhibit 2) What is the cause of the outage?

AAnother network engineer activated zoneset ZoneSetMDS-B-VSAN100 on MDS-A.

BAnother network engineer issued the zone mode enhanced vsan 100 command on another switch in the fabric.

CAnother network engineer activated the zoneset ZoneSetMDS-B-VSAN100 command on another switch in the fabric.

DAnother network engineer issued the zone default-zone permit vsan 100 command on another switch in the fabric.

Show Answer

Question: 2

Which two components are Required for successful MDS USB POAP? (Choose two)

ANTFS formatted USB drive

BUSB drive in port 1

Cscript named poap_script.pl

DENTERPRISE_PKG license

Esystem and kickstart images

Show Answer

Question: 3

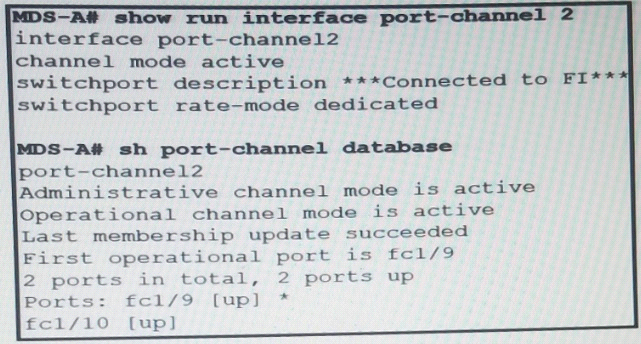

Refer to the exhibit.

q3_300-625

Refer to the exhibit. A port channel has been configured between a Cisco MDS and a Cisco Fabric Interconnect switch. Which interface(s) in the port channel carry the control plane traffic?

Aper packet, balanced between interfaces fc1/9 and fc1/10

Bfrom interface fc1/9

Cfrom interface fc1/10

Dper flow, balanced between interfaces fc1/9 and fc1/10

Show Answer

Question: 4

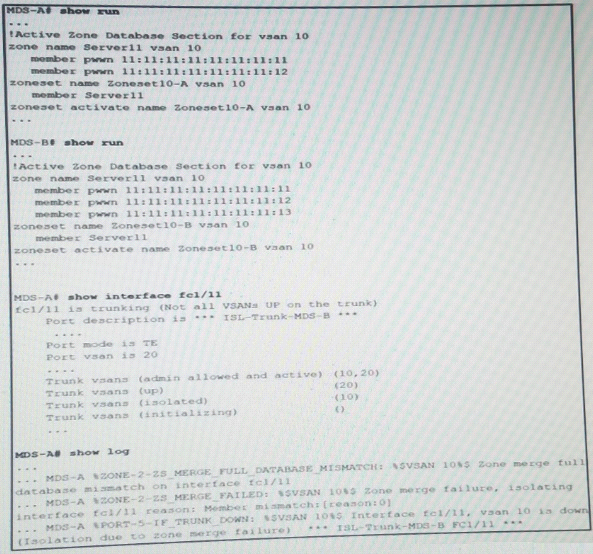

Refer to the exhibit.

q4_300-625

Refer to the exhibit. A storage network engineer gets remote access to two Cisco MDS 9000 Series Switches with an ISL trunk and receives several log messages. Which set of actions resolve the problem while least affecting service?

A1. Add 11:11:11:11:11:11:11:13 pwwn in zone Server11 and activate Zoneset10-A on MDS-A.
2. shut/no shut interface fc1/11 on MDS-A.

B1. Deactivate zone set Zoneset10-A on MDS-A.
2. shut/no shut interface fc1/11 on MDS-A.

C1. Add 11:11:11:11:11:11:11:13 pwwn in zone Server11 and activate Zoneset10-A on MDS A.
2. Remove VSAN 10 from the allowed VSAN range of interface fc1/11 on MDS-A and add it back in the range.

D1. Explicitly import zone set Zoneset10-A on MDS-B using the zoneset import interface fc1/11 vsan 10 command.
2. Activate the zone set Zoneset 10-A.

Show Answer

Question: 5

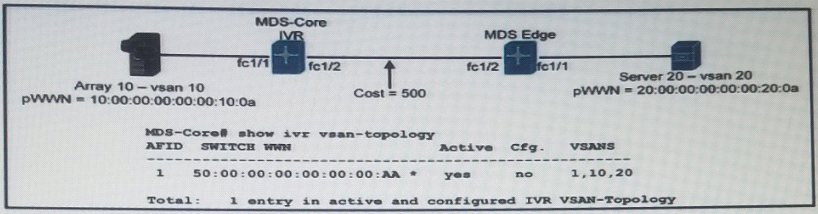

Refer to the exhibit.

q5_300-625

Refer to the exhibit. An engineer is configuring Inter-VSAN routing for two Cisco MDS switches. The FSPF cost between the switches is 500, and the Cisco MDS core virtuahzes an IVR NAT domain as shown. Which statement about the topology is correct?

AThe MDS-Core simulates an IVR NAT. and the FSPF cost is 500.

BThe MDS-Core simulates an IVR NAT and increases the cost to 501.

CThe MDS-Core simulates an IVR NAT and decreases the cost to 400.

DThe MDS-Core simulates an IVR NAT and increases the cost to 600.

Show Answer
