Cisco 300-515 Quiz 1 Topic 9 Questions 1-5

Question: 1

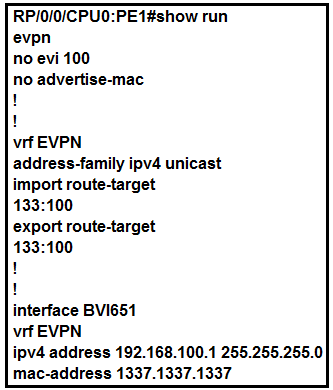

Refer to the exhibit.

q1_300-515

A network operator is implementing EVPN IRB on PE1. Which two command placements enable the advertisement of Type 2 routes and what information do Type 2 routes contain? (Choose two.)

AThe operator adds in ''host-routing'' under the VRF EVPN.

BType 2 routes contain MAC/IP information.

CType 2 routes contain Ethernet Auto-Discovery information.

DThe operator adds in ''host-routing'' under the BVI651 interface.

EType 2 routes contain inclusive source-specific multicast route information.

Show Answer

Question: 2

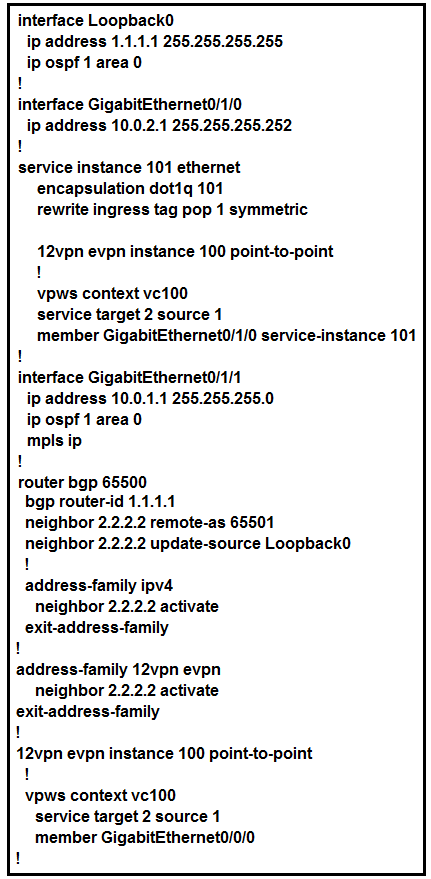

Refer to the exhibit.

q2_300-515

An engineer is trying to configure an EVPN VWPS. What is the issue with this configuration?

AThe member in the VPWS context should be the PE-facing interface.

BThe 12vpn evpn command should be instance 101.

CInterface GigabitEthernet0/1/0 should not have any IP address.

DThe service instance and the EVPN instance are different.

Show Answer

Question: 3

While implementing Layer 3 MPLS VPN, which feature should an engineer use at the PEs to transform the customer IPv4 prefixes into a unique 96-bit prefix?

ART

BVC ID

CRD

DPW ID

Show Answer

Question: 4

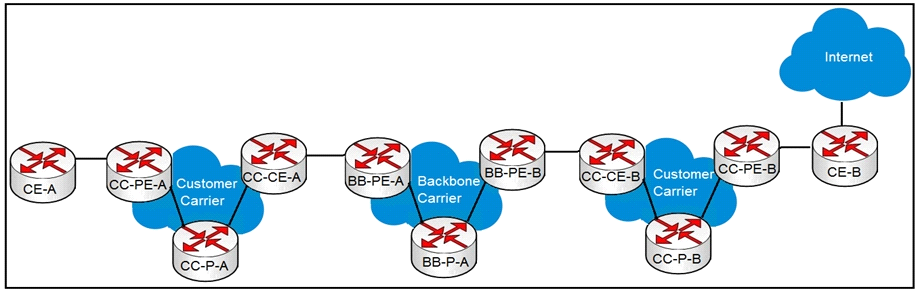

Refer to the exhibit.

q4_300-515

A customer carrier running MPLS VPN wants to utilize a backbone carrier to forward traffic and exchange VPNv4 prefixes between the two customer carrier networks depicted. Which two sets of routers must establish MP-iBGP sessions? (Choose two.)

ABB-PE-A and CC-PE-B

BCC-PE-A and CC-PE-B

CBB-PE-A and BB-PE-B

DCC-PE-A and BB-PE-A

EBB-PE-A and BB-P-A

FCC-PE-A and CC-P-A

Show Answer

Question: 5

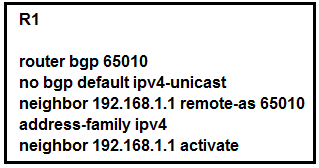

Refer to the exhibit.

q5_300-515

Which statement describes the result of this BGP configuration?

AR1 operates using IPv4 and VPNv4 address families.

BR1 operates on IPv6 only because the bgp default ipv4-unicast command is missing.

CR1 establishes a VPNv4 eBGP relationship with neighbor 192.168.1.1.

DR1 establishes an iBGP relationship with peer 192.168.1.1.

Show Answer
