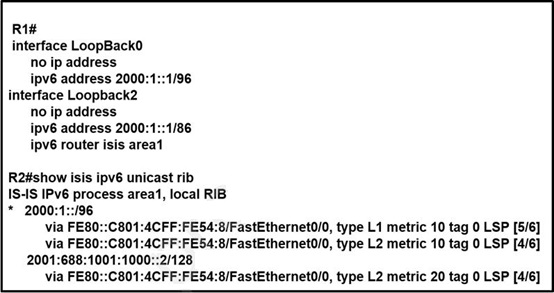

Refer to the exhibit.
After configuring IS-IS on routers R1 and R2, an engineer notices that only the loopback interface at 2000:1::1 /96 is known to router R2. Which change must be made so that only Loopback2 is advertised from R1 to R2?

AConfigure the router isis areal command under the LoopbackO interface on R1.

BRemove the advertise passive-only command under the IS-IS address family ipv6 configuration

CRemove the ipv6 router isis areal command under the Loopback2 interface on R1.

DRemove the passive-interface Loopback0 command under the router isis areal configuration.

1 answers

87 votes

1109

Answer Link

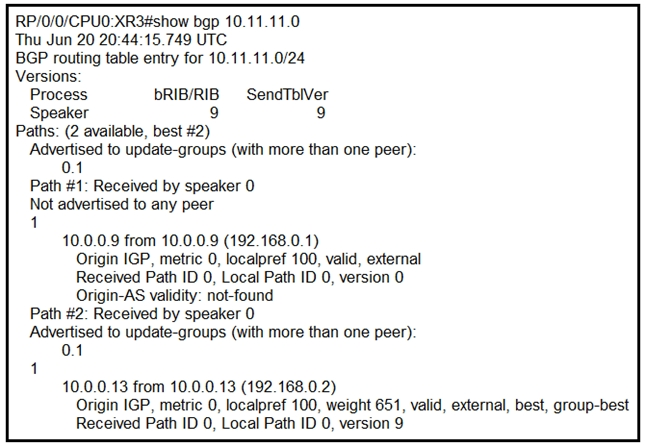

Refer to the exhibit.
A network operator is getting the route for 10.11.11 0/24 from two upstream providers on
#XR3. The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to route via next hop of 10.0.0.9 as primary when available. Which of these can the operator use the routing policy language for, to enforce this traffic forwarding path?

Aweight of 0 on the prefix coming from 192.168.0.2

Blower local preference on the prefix coming from 192.168.0.2

Chigher local preference on the prefix coming from 192.168.0.1

Dweight of 100 on the prefix coming from 192.168.0.1

1 answers

98 votes

1230

Answer Link

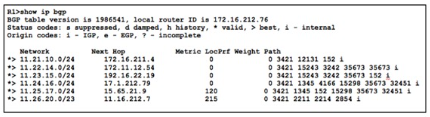

Refer to the exhibit.

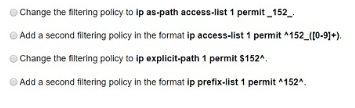

Refer to the exhibit. Company A established BGP sessions with several ISPs. A network engineer at the company must filter out all traffic except for routes that transit AS 152. The engineer configured the filtering policy ''permit _152S_(_[0.9])'' on R1, but after applying the configuration, the engineer notices that other routes are still visible. Which action resolves the issue?

AOption A

BOption B

COption C

DOption D

1 answers

95 votes

1435

Answer Link

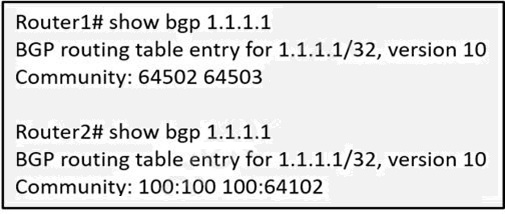

Refer to the exhibit.
An engineer working on a client's network is trying to solve the BGP community issue on R1 and R2 routers. After displaying the BGP entries, the engineer notices that both routers still have different outputs. Which action must the engineer perform to any of the routers to correct the problem and get the same output?

AExecute the Ip bgp-community new-format command in Router1 .

BRemove the Ip bgp-community new-format command in Router1 .

CAdvertise the route to Router2 as standard community.

DAdvertise the route to Router2 as extended community.

1 answers

91 votes

1392

Answer Link

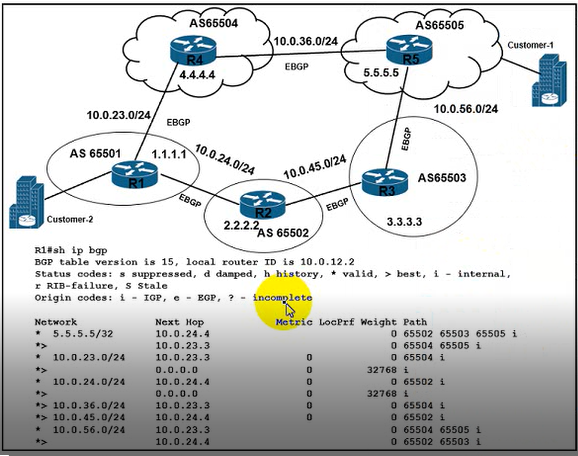

Refer to the exhibit.

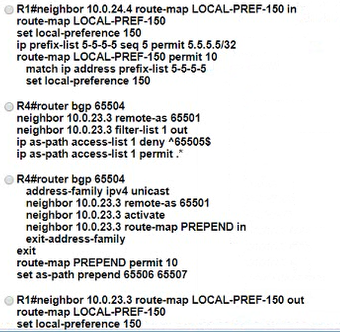

Refer to the exhibit There is a BGP traffic path issue between Customer-1 and Customer-2 Users from Customer-2 have reported file transfer issues High utilization on the path between both customers causes many packet drops. Which configuration resolves the issue?

AOption A

BOption B

COption C

DOption D

1 answers

99 votes

999

Answer Link

Cisco 300-510 Quiz:1 Topic:7 Questions:1-5

Free Practice Mock Questions Set 1-5 (Quiz # 1) for Cisco 300-510 Exam, according to official Cisco Implementing Cisco Service Provider Advanced Routing Solutions exam syllabus topic # 7

Quiz 1

Refer to the exhibit.After configuring IS-IS on routers R1 and R2, an engineer notices that only the loopback interface at 2000:1::1 /96 is known to router R2. Which change must be made so that only Loopback2 is advertised from R1 to R2?

Refer to the exhibit.Refer to the exhibit There is a BGP traffic path issue between Customer-1 and Customer-2 Users from Customer-2 have reported file transfer issues High utilization on the path between both customers causes many packet drops. Which configuration resolves the issue?

Cisco 300-510 Quiz:1 Topic:7 Questions:1-5

Refer to the exhibit.
After configuring IS-IS on routers R1 and R2, an engineer notices that only the loopback interface at 2000:1::1 /96 is known to router R2. Which change must be made so that only Loopback2 is advertised from R1 to R2?

Refer to the exhibit.
Refer to the exhibit There is a BGP traffic path issue between Customer-1 and Customer-2 Users from Customer-2 have reported file transfer issues High utilization on the path between both customers causes many packet drops. Which configuration resolves the issue?
