Arcitura Education S90.20 Quiz 1 Topic 1 Questions 1-5

Question: 1

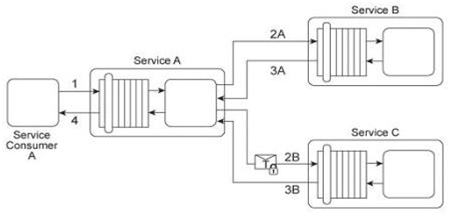

Service A is a publically accessible service that provides free multimedia retrieval capabilities to a range of service consumers. To carry out this functionality, Service A is first invoked by Service Consumer A (1). Based on the nature of the request message received from Service Consumer A, Service A either invokes Service B or Service C .When Service B is invoked by Service A (2A) it retrieves data from publicly available sources (not shown) and responds with the requested data (3A). When Service C is invoked by Service A (2B) it retrieves data from proprietary sources within the IT enterprise (not shown) and responds with the requested data (3B). After receiving a response from Service B or Service C, Service A sends the retrieved data to Service Consumer A (4). Service B does not require service consumers to be authenticated, but Service C does require authentication of service consumers. The service contract for Service A therefore uses WS-Policy alternative policies in order to express the two different authentication requirements to Service Consumer A .When Service Consumer A sends a request message (1), Service A determines whether the request requires the involvement of Service C and then checks to ensure that the necessary security credentials were received as part of the message. If the credentials provided by Service Consumer A are verified. Service A creates a signed SAML assertion and sends it with the request message to Service C (2B) This authentication information is protected by public key encryption However, responses to Service Consumer A's request message (3B, 4) are not encrypted for performance reasons. Recently, the usage of Service C has noticeably declined. An investigation has revealed response messages issued by Service C (3B) have been repeatedly intercepted and accessed by unauthorized and malicious intermediaries. As a result, Service Consumer A has lost confidence in the use of Service A for the retrieval of proprietary data because it is being viewed as a security risk. This is especially troubling, because the owner of Service A had planned to start charging a fee for Service A's ability to provide proprietary data via the use of Service C .How can this service composition architecture be changed to address the security problem with minimal impact on runtime performance?

q1_S90.20

AUse the existing PKI to provide message-layer security for the response messages originating from Service C .To provide-message confidentiality, Service C can encrypt the response messages using Service Consumer A's public key. This prevents unauthorized intermediaries from accessing the content of response messages.

BUse the existing PKI to provide two-way authentication of the exchanged messages. After receiving a request from the service consumer, Service A can respond with a signed acknowledgement of the message, encrypted by the public key of Service Consumer A .Only Service Consumer A will be able to decrypt the encrypted acknowledgement. Service Consumer A then responds to the acknowledgement, thereby verifying its identity with Service A .Because both Service Consumer A and Service A are mutually authenticated, end-to-end transport-layer security is sufficient to provide message confidentiality in order to prevent unauthorized intermediaries from accessing messages originating from Service C .

CUse the existing PKI to establish secure communication between Service Consumer A and Service C .A symmetric key can be generated for the data being sent from Service C to Service Consumer A Service C can generate a session key that is encrypted with Service Consumer A's public key. Service C can then attach the session key to the response message, which is encrypted using the session key. Because only Service Consumer A can decrypt the encrypted session key, the data transmitted in the message is safe from access by unauthorized intermediaries.

DUse the existing PKI to specify encryption and digital signature requirements on the messages. Service C can use Service-Consumer A's public key to generate a symmetric key. Service Consumer A can also generate the same session key from its own public key. Service C can use the session key to encrypt the response message (and the hash value of the response message), concatenate them, and send them to Service Consumer A .Service Consumer A separates the concatenated and encrypted hash value, decrypts it, and then decrypts the encrypted response message. As a result, the confidentiality and integrity of the response message are guaranteed.

Show Answer

Question: 2

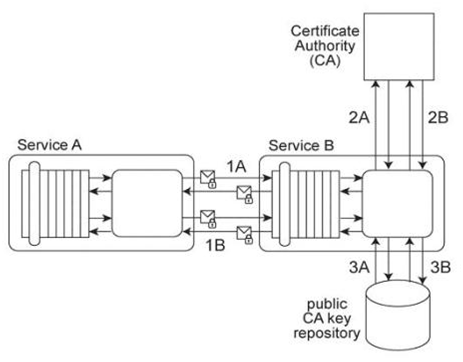

Service A exchanges messages with Service B multiple times during the same runtime service activity. Communication between Services A and B has been secured using transport-layer security. With each service request message sent to Service B (1A .IB), Service A includes an X.509 certificate, signed by an external Certificate Authority (CA). Service B validates the certificate by retrieving the public key of the CA (2A .2B) and verifying the digital signature of the X.509 certificate. Service B then performs a certificate revocation check against a separate external CA repository (3A, 3B). No intermediary service agents reside between Service A and Service B .Service B has recently suffered from poor runtime performance plus it has been the victim of an access-oriented attack. As a result, its security architecture must be changed to fulfill the following new requirements:

1. The performance of security-related processing carried out by Service B when communicating with Service A must be improved.

2. All request messages sent from Service A to Service B must be screened to ensure that they do not contain malicious content. Which of the following statements describes a solution that fulfills these requirements?

q2_S90.20

AEliminate the need to retrieve the public key from the Certificate Authority and to verify the certificate revocation information by extending the service contract of Service B to accept certificates only from pre-registered Certificate Authorities. This form of pre-registration ensures that Service B has the public key of the corresponding Certificate Authority.

BAdd a service agent to screen messages sent from Service A to Service B .The service agent can reject any message containing malicious content so that only verified messages are passed through to Service B .Instead of using X.509 certificates, use WS-Secure Conversation sessions. Service A can request a Security Context Token (SCT) from a Security Token Service and use the derived keys from the session key to secure communication with Service B .Service B retrieves the session key from the Security Token Service.

CApply the Trusted Subsystem pattern by introducing a new utility service between Service A and Service B .When Service A sends request messages, the utility service verifies the provided credentials and creates a customized security profile for Service A .The security profile contains authentication and access control statements that are then inherited by all subsequent request messages issued by Service A .As a result, performance is improved because Service A does not need to resubmit any additional credentials during subsequent message exchanged as part of the same runtime service activity. Furthermore, the utility service performs message screening logic to filter out malicious content.

DApply the Trusted Subsystem pattern to by introducing a new utility service. Because Service B is required to limit the use of external resources. Service A must ensure that no other services can request processing from Service B in order to prevent malicious content from infiltrating messages. This is achieved by creating a dedicated replica of Service B to be used by the utility service only. Upon receiving the request message and the accompanying security credentials from Service A .the utility service verifies the authentication information and the validity of the X.509 signature. If the authentication information is correct, then the utility service replicates the code of Service B, performs the necessary processing, and returns the response to Service A .

Show Answer

Question: 3

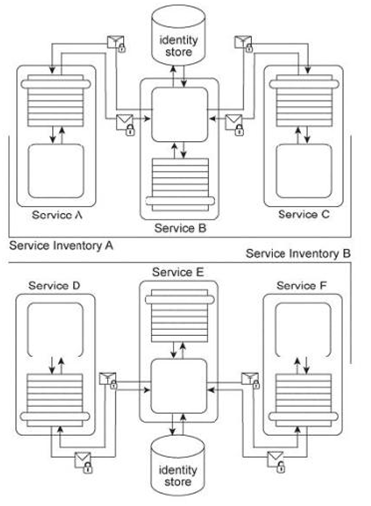

Services A, B, and C reside in Service Inventory A and Services D, E, and F reside in Service Inventory B .Service B is an authentication broker that issues WS-Trust based SAML tokens to Services A and C upon receiving security credentials from Services A and C .Service E is an authentication broker that issues WS-Trust based SAML tokens to Services D and F upon receiving security credentials from Services D and E .Service B uses the Service Inventory A identify store to validate the security credentials of Services A and C .Service E uses the Service Inventory B identity store to validate the security credentials of Services D and F .To date, the two service inventories have existed independently from each other. However, a requirement has emerged that the services in Service Inventory A need to be able to use the services in Service Inventory B, and vice versa. How can cross-service inventory message exchanges be enabled with minimal changes to the existing service inventory architectures and without introducing new security mechanisms?

q3_S90.20

ABecause SAML tokens cannot be used across multiple security domains, authentication brokers C and E need to be replaced with one single authentication broker so that one token issuer is used for all services across both of the service inventories.

BThe current security mechanism already fulfills the requirement because SAML tokens can be used across multiple security-domains. The only change required is for each authentication broker to be configured so that it issues service inventory-specific assertions for SAML tokens originating from other service inventories.

CThe individual domain service inventories need to be combined into one enterprise service inventory. The Service Perimeter Guard pattern can be applied to establish a contact point for request messages originating from outside the service inventory. Within the service inventory, services no longer need to be authenticated because they are all part of the same trust boundary.

DThe Trusted Subsystem pattern is applied to encapsulate Services B and E using a central utility service that balances request and response messages exchanged between Services B and E, depending on which service inventory the messages originate from. The utility service also contains transformation logic to ensure that the SAML tokens issued by Services B and E are compatible. This guarantees that an issued SAML token can be used across Service Inventories A and B without further need for runtime conversion.

Show Answer

Question: 4

Service A provides a customized report generating capability. Due to infrastructure limitations, the number of service consumers permitted to access Service A concurrently is strictly controlled. Service A validates request messages based on the supplied credentials (1). If the authentication of the request message is successful, Service A sends a message to Service B (2) to retrieve the required data from Database A (3). Service A stores the response from Service B (4) in memory and then issues a request message to Service C (5). Service C retrieves a different set of data from Database A (6) and sends the result back to Service A (7). Service A consolidates the data received from Services B and C and sends the generated report in the response message to its service consumer (8).

q4_S90.20

This service composition was recently shut down after it was discovered that Database A had been successfully attacked twice in a row. The first type of attack consisted of a series of coordinated request messages sent by the same malicious service consumer, with the intention of triggering a range of exception conditions within the database in order to generate various error messages. The second type of attack consisted of a service consumer sending request messages with malicious input with the intention of gaining control over the database server. This attack resulted in the deletion of database records and tables. An investigation revealed that both attacks were carried out by malicious service consumers that were authorized. How can the service composition security architecture be improved to prevent these types of attacks?

AApply the Data Confidentiality pattern together with the Data Origin Authentication pattern. This establishes message-level-security so that all messages are encrypted and digitally signed. Secondly, the Service A logic must be enhanced so that it can keep track of the trustworthiness of its service consumers If a request message originated from a trustworthy service consumer, then the request message is processed as normal. If the request message originates from a non-trustworthy service consumer, then the request message is rejected and an error message is returned to the service consumer.

BApply the Service Perimeter Guard pattern together with the Trusted Subsystem pattern. This establishes a perimeter service between Database A and any service that requires access to it (including Services B and C). The perimeter service evaluates incoming data requests and filters out those that can introduce a security risk. Only request messages issued by authorized services and service consumers are forwarded to Database A .Responses originating from Database A are further evaluated by the trusted subsystem to remove any unauthorized data. The two patterns together ensure that only authorized data is returned to the service consumer and that no request messages present a security threat to Database A.

CApply the Exception Shielding pattern together with the Message Screening pattern. This establishes new logic within Service A that screens incoming request messages for data-driven attacks (such as SQL injection and X-Path injection attacks), and also evaluates whether exception details returned by Database A contains potentially confidential or unsafe information. Any inappropriate exception information is replaced with sanitized content.

DApply the Trusted Subsystem pattern to protect Database A from data-driven attacks and to evaluate whether database-responses contain inappropriate data. The trusted subsystem maintains a snapshot of Database A and executes the original service consumer's request message against the snapshot. The processing logic that accesses the snapshot has limited privileges in order to prevent malicious attacks from overtaking the database. If no security violation is detected during the processing of the snapshot, then the original service consumer's request is forwarded to Database A .If an error message is generated during the processing of the snapshot, then it is returned to the original service consumer and the request is not forwarded to Database A .Because the error message was generated on the snapshot, it cannot contain unsafe information about Database A.

Show Answer

Question: 5

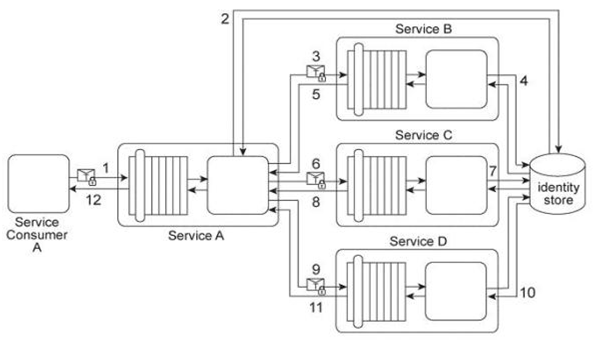

Service Consumer A sends a request message with a Username token to Service A (1). Service B authenticates the request by verifying the security credentials from the Username token with a shared identity store (2), To process Service Consumer A's request message. Service A must use Services B, C, and D .Each of these three services also requires the Username token (3. 6, 9) in order to authenticate Service Consumer A by using the same shared identity store (4, 7, 10). Upon each successful authentication, each of the three services (B, C, and D) issues a response message back to Service A (5, 8, 11). Upon receiving and processing the data in all three response messages, Service A sends its own response message to Service Consumer A (12). There are plans implement a single sign-on security mechanism in this service composition architecture. The service contracts for Services A, C, and D can be modified with minimal impact in order to provide support for the additional messaging requirements of the single sign-on mechanism. However, Service B's service contract is tightly coupled to its implementation and, as a result, this type of change to its service contract is not possible as it would require too many modifications to the underlying service implementation. Given the fact that Service B's service contract cannot be changed to support single sign-on, how can a single sign-on mechanism still be implemented across all services?

q5_S90.20

AApply the Brokered Authentication pattern so that Service A acts as an authentication broker that issues a SAML token on behalf of Service Consumer A, and forwards this token to Services C and D .Create a new utility service is positioned between Service A and Service B .This utility service perform a conversion of the SAML token to a Username token, and then forwards the Username token to Service B so that Service B can still perform authentication of incoming requests using its own security mechanism.

BApply the Brokered Authentication pattern to establish Service A as an authentication broker that issues a SAML token for Service Consumer A and forwards Service Consumer A's token to other services. Apply the Trusted Subsystem pattern to create a utility service that acts as a trusted subsystem for Service B .This utility service is able to perform authentication using the SAML token from Service A and can then generate a Username token by embedding its own credentials when accessing Service B .This way, Service B can perform authentication of requestmessages as it does now, but it can still participate in the single sign-on message exchanges without requiring changes to its service contract.

CApply the Brokered Authentication pattern so that Service A acts as an authentication broker that issues a SAML token for Service Consumer A and forwards Service Consumer A's token to Services C and D .Create a second service contract for Service B that supports single sign-on. This way, Service B can still perform authentication of incoming requests using the old service contract while allowing for the processing of SAML tokens using the new service contract.

DReplace the Username tokens with X.509 digital certificates. This allows for the single sign-on mechanism to be implemented without requiring changes to any of the service contracts.

Show Answer

Arcitura Education S90.20 Quiz:1 Topic:1 Questions:1-5
