Question: 1

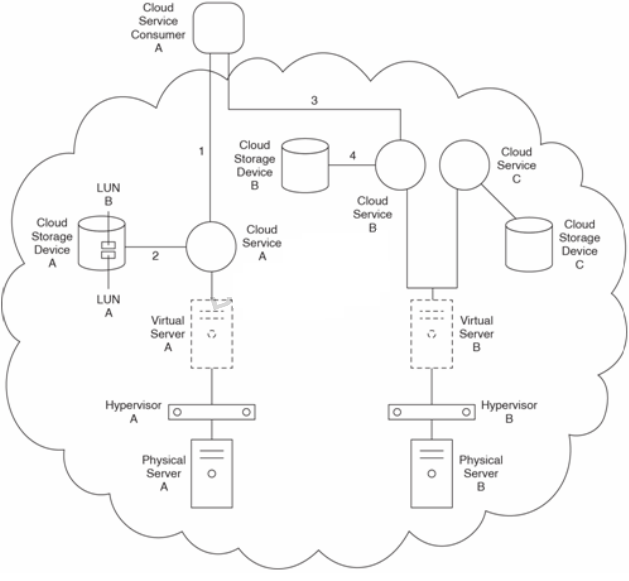

Cloud Service A requires access to Cloud Storage Device A, which contains LUNs A and B. Cloud Service A is hosted by Virtual Server A, which resides on Hypervisor A on Physical Server A.

Virtual Server B hosts Cloud Service B and Cloud Service C.

Cloud Service Consumer A accesses Cloud Service A (1), which then accesses LUN A or B on Cloud Storage Device A (2). After receiving the requested data from Cloud Service A, Cloud Service Consumer A forwards the data to Cloud Service B (3), which then writes it to Cloud Storage Device B (4).

q1_C90.06

Cloud Service Consumer A belongs to Organization A,

Organization A uses LUN A and LUN B on Cloud Storage Device A to store their important client account data. Cloud Storage Device A is a low-performance cloud storage device, which begins to cause performance issues as more data is added to LUNs A and B and as Cloud Service Consumer A performs data access requests more frequently. Organization A asks that its cloud architecture be upgraded to process increased quantities of data and higher volumes of data requests.

Organization A has been leasing a PaaS environment that it used to build Cloud Service A, which it would like to make available to the general public. Organization A needs to establish a system capable of monitoring usage of Cloud Service A for billing purposes.

The cloud provider is using a usage data collection and reporting system that gathers information on Organization A's hosted IT resources approximately ten hours after the time of usage. One day, Organization A attempts to retrieve information on whether Virtual Server B has available Cloud Service C instances. They discover that they are unable to obtain the current status of Virtual Server B. Organization A demands a system that provides instant availability reporting.

Which of the following statements lists the patterns that can be applied to solve these three requirements and problems?

ACross-Storage Device Vertical Tiering, Pay-as-You-Go. Self-Provisioning

BService Load Balancing, Pay-as-You-Go, Multipath Resource Access

CIntra-Storage Device Vertical Data Tiering, Usage Monitoring, Centralized Remote Administration

DNone of the above.

Show Answer

Question: 2

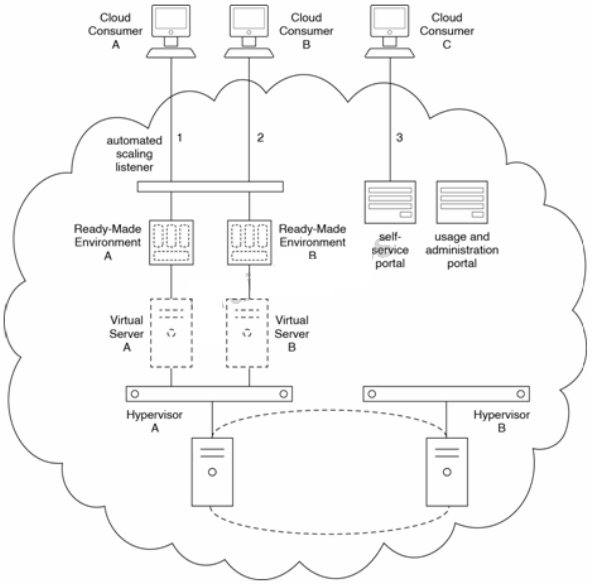

Ready-Made Environment A is hosted by Virtual Server A and Ready-Made Environments is hosted by Virtual Server B. Virtual Servers A and B are hosted by Hypervisor A, which is part of a hypervisor cluster. An automated scaling listener intercepts cloud consumer requests and automatically invokes the on-demand generation of additional instances of ready-made environments, as required.

A self-service portal and a usage and administration portal are also available to cloud consumers.

The self-service portal can be used to request the provisioning of a new ready-made environment.

Any cloud consumer that has already had a ready-made environment provisioned can configure and view information about that ready-made environment via the usage and administration portal.

Cloud Consumer A accesses Ready-Made Environment A to work on the development of a new cloud service (1). Cloud Consumer B accesses Ready-Made Environment B to test a recently completed application comprised of three cloud services (2). Cloud Consumer C accesses the self-service portal to request the creation of a new ready-made environment (3).

q2_C90.06

The cloud provider is required to perform an emergency maintenance outage on a cloud storage device used by all ready-made environments. The unplanned outage takes two hours. During this period, Cloud Consumers A and B are unable to access Ready-Made Environments A and B and Cloud Consumer C receives an error when submitting a request to create a new ready-made environment.

After the maintenance outage is over, Cloud Consumers A and B encounter the following problems:

Cloud Consumer A is unable to recover session data that was kept in memory for an extended period, prior to the time of the outage.

Cloud Consumer B has no access to Virtual Server B, which was moved to Hypervisor B during the maintenance outage. When Cloud Consumer B attempts to ping Virtual Server B, the request times out.

Even though Cloud Consumer C is able to log into the usage and administration portal to confirm that its ready-made environment was successfully provisioned, the unexpected outage has raised concerns about the stability of the ready-made environment's underlying infrastructure. Cloud Consumer C informs the cloud provider that it cannot proceed with its lease of the ready-made environment if there are future occurrences of this type of maintenance outage.

Which of the following statements can help address the problems and concerns of the three cloud consumers?

AA combination of the Load Balanced Virtual Server Instances and Synchronized Operating State patterns can be applied to establish a system capable of deferring state across multiple cloud storage devices, each located on a different virtual server. The Elastic Disk Provisioning pattern can be applied to persist virtual server configuration data across hypervisors so that connectivity is preserved whenever a virtual server is relocated to a different hypervisor. The Zero Downtime pattern can be applied to ensure that none of the ready-made environments or virtual servers are subject to a maintenance outage in the future.

BThe Elastic Disk Provisioning and Cross-Storage Device Vertical Tiering patterns can be applied to establish a cloud architecture that supports a set of cloud storage devices, each with different tiers that cloud consumers can choose to scale to The Synchronized Operating State pattern can be applied in combination with the Hypervisor Clustering pattern to avoid further virtual server and ready-made environment connectivity problems. The Redundant Storage pattern can be applied so that if a cloud storage device fails, a secondary implementation of the cloud storage device automatically takes over processing tasks, thereby avoiding outages.

CThe Service State Management pattern can be applied to establish a system that can persist session data in a database. The Persistent Virtual Network Configuration pattern can be applied to centralize the configuration data necessary for virtual servers to remain accessible after they have been relocated to different hypervisors. The Storage Maintenance Window pattern can be applied to establish a system that allows cloud storage devices to be maintained without causing outages.

DNone of the above.

Show Answer

Question: 3

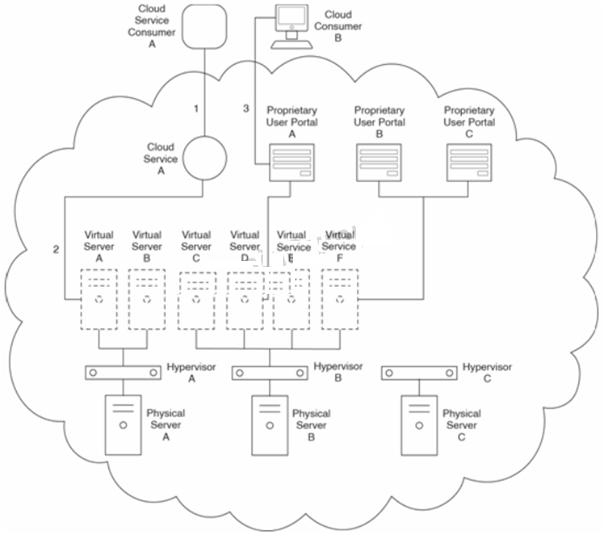

Virtual Server A and Virtual Server B are hosted by Hypervisor A, which resides on Physical Server A. Virtual Server A hosts Cloud Service A. Virtual Server C. Virtual Server D, Virtual Server E and Virtual Server F are hosted by Hypervisor B on Physical Server B. Physical Server C, which hosts Hypervisor C, is currently not being used.

Cloud Service Consumer A accesses Cloud Service A (1), which accesses files stored in a folder on Virtual Server A (2). Cloud Consumer B uses Proprietary User Portal A to administer legacy software (not shown) installed on Virtual Server D (3). Proprietary User Portal B and Proprietary User Portal C are also available for accessing additional legacy systems located on Virtual Server F; however, they are not often used.

q3_C90.06

The cloud shown in the figure is a private cloud. Department A and Department B share IT resources within the private cloud and are part of the same organization. Cloud Service Consumer A belongs to Department A and Cloud Consumer B belongs to Department B.

During routine access of Cloud Service A by Cloud Service Consumer A, the Department A cloud resource administrator is notified that a hardware fault is occurring within Physical Server A that will soon cause it to fail. The cloud resource administrator scrambles to arrange for Cloud Service A to be relocated but is unable to do so before Physical Server A does fail. It takes several more hours of downtime until, with the cooperation of the cloud provider, the Cloud Service A implementation is successfully moved to Physical Server C and made live again. Managers at Department A demand that a system be put in place to avoid this scenario in the future.

Cloud Service A was initially developed specifically for Department A's Cloud Service Consumer A. However, recently Department B has indicated that it will be developing its own cloud service consumer that will also need to regularly access Cloud Service A. After this new cloud service consumer is deployed, both Department A and Department B experience occasional runtime errors when their cloud service consumers attempt to access Cloud Service A at the same time.

Cloud Service A accesses a legacy system on Virtual Server A that requires regular updates and patches to stay current. Each time the legacy system is updated, Cloud Service A needs to undergo an update as well, during which it needs to be temporarily unavailable. Department A managers ask the cloud provider to extend the cloud architecture so that a duplicate, secondary implementation of Cloud Service A can be made available while the primary implementation undergoes a maintenance update.

Which of the following statements provide a solution that can adequately resolve all of Departments A and B's issues?

AThe Resource Reservation pattern can be applied to protect the Cloud Service A implementation via the use of a logical network perimeter. The Workload Distribution pattern can be applied to introduce a load balancing system for Cloud Service A. The Zero Downtime pattern can be applied to establish a system that allows Cloud Service A to be constantly available, even during maintenance outages.

BThe Resource Pooling pattern can be applied to pool together Physical Server A, B and C, thereby enabling the Cloud Service A implementation to be migrated to a different physical server when its hosting physical server fails. The Dynamic Scalability pattern can be applied to establish a system whereby multiple instances of Cloud Service A can be created and an automated scaling listener can be used to redirect concurrent requests to the Cloud Service A instances. The Load Balanced Virtual Server Instances pattern can be applied to establish a system that distributes instances of Cloud Service A to Virtual Server B.

CThe Non-Disruptive Service Relocation pattern can be applied to establish a system that uses live VM migration to move the virtual server hosting Cloud Service A to a new physical server without allowing any downtime. The Dynamic Scalability pattern can be applied to establish a system whereby multiple instances of Cloud Service A can be created and an automated scaling listener can be used to redirect concurrent requests to the Cloud Service A instances. The Non-Disruptive Service Relocation pattern can be applied to establish a system whereby cloud service consumer requests to Cloud Service A can be temporarily redirected to a duplicate implementation of Cloud Service A while the original implementation undergoes a maintenance outage.

DNone of the above.

Show Answer

Question: 4

Cloud Service A is hosted by Virtual Server A, which is hosted by Hypervisor A on Physical Server A. Virtual Server B is hosted by Hypervisor B on Physical Server B.

Cloud Service Consumer A accesses Cloud Service A and the request is intercepted by an SLA monitor (1). Cloud Service A receives the request (2) and accesses Cloud Storage Device A and Cloud Storage Device B (3).

Cloud Service Consumer A belongs to Organization A, which is leasing all of the IT resources shown in the figure as part of an laaS environment.

q4_C90.06

Cloud Storage Device B has a higher performance capacity than Cloud Storage Device A. Cloud Storage Device C has a higher performance capacity than Cloud Storage Device B. The requests being received by Cloud Service A from Cloud Service Consumer A have recently increased in both quantity and in the amount of data being queried, written and read from Cloud Storage Device A. As a result, Cloud Storage Device A's capacity is frequently reached and it has become unstable at times, timing out with some requests and rejecting other requests.

Cloud Storage Device C is used by Organization A to store backup data on a daily basis. One day, a hardware failure within Cloud Storage Device C results in the permanent loss of data.

Organization A requires a system that will prevent this type of failure from resulting in data loss.

The cloud provider is planning to implement a routine maintenance schedule for Cloud Storage Devices A, B, and C and issues a notice stating that the new schedule will start next week. An outage of 30 minutes every Thursday and Sunday at 8:00 PM is needed for the maintenance tasks. Upon hearing this, Organization A complains that they cannot afford to have Cloud Storage Devices A and B become inoperable, especially not during the weekdays.

Which of the following statements describes a solution that can address Organization A's issues?

AThe Intra-Storage Device Vertical Data Tiering pattern can be applied to enable dynamic scaling between Cloud Storage Devices A, B and C. The Dynamic Failure Detection and Recovery pattern can be applied to establish a resilient watchdog system that is able to respond dynamically to prevent data loss. The Service State Management pattern can be applied to keep a copy of the data in Cloud Storage Devices A, B and C during the maintenance outages.

BThe Cross-Storage Device Vertical Tiering pattern can be applied to enable dynamic scaling between Cloud Storage Devices A, B and C. The Redundant Storage pattern can be applied by designating Cloud Storage Device D as the secondary storage to which Organization A's data can be replicated. In order to prevent planned or unplanned outages from affecting Organization A's data access, the Storage Maintenance Window pattern can be applied to replicate the data in Cloud Storage Device D for retrieval before the outages begin.

CThe Load Balanced Virtual Switches pattern can be applied to increase the bandwidth of Physical Server A so that data processing problems within Cloud Storage Device A can be prevented. The Non-Disruptive Service Relocation pattern can be applied to automatically relocate Cloud Storage Device A to Physical Server B so that data access is not interrupted. The Storage Maintenance Window pattern can be applied to replicate the data in Cloud Storage Device D for retrieval before the outages begin.

DNone of the above.

Show Answer

Question: 5

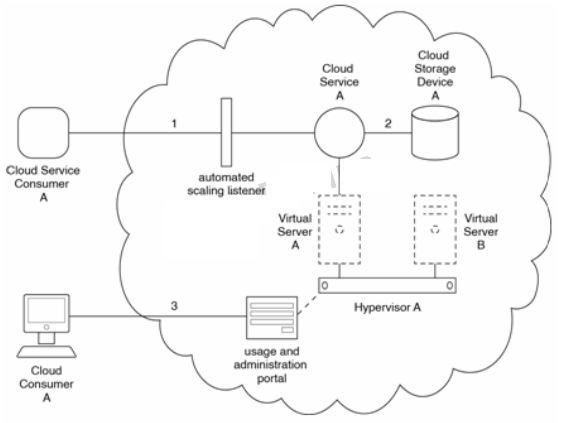

Cloud Service A is installed on Virtual Server A and the database it accesses is located on Cloud Storage Device A. Both Virtual Servers A and B are hosted by Hypervisor A. Requests from cloud

service consumers are intercepted by an automated scaling listener that automatically routes subsequent requests to additional instances of Cloud Service A whenever the given usage of an instance exceeds two concurrent requests.

q5_C90.06

Cloud Service Consumer A accesses Cloud Service A (1), which either sends a query or a read/write request to a database on Cloud Storage Device A (2). A usage and administration portal is available, enabling Cloud Consumer A to view the billing and usage history of Virtual Servers A and B (3).

Cloud Service Consumer A and Cloud Consumer A are owned by Organization A. which performs several tests on the cloud architecture that produce the following results:

A stress test is performed to generate workloads on Virtual Servers A and B to gauge their load capacity. This test reveals that both virtual servers have firm workload thresholds. If the workload capacity on either virtual server reaches its threshold, further processing requests are rejected.

An availability test shows that Cloud Service A becomes unavailable whenever Hypervisor A crashes.

A security test is carried out during which the cloud architecture is accessed by a malicious cloud consumer that disables the path used by Cloud Service A to access Cloud Storage Device A, thereby causing all subsequent cloud service consumer requests to be replied to with data access errors.

Which of the following statements describes a solution that addresses the concerns raised by the three tests?

AThe Resource Reservation pattern can be applied to ensure that Virtual Servers A and B are not accessed by any cloud consumers other than Organization A, thereby enabling their respective capacity to be maximized. A second hypervisor can be implemented and the Synchronized Operating State pattern can be applied to emulate the usage of the resource cluster mechanism with the two hypervisors. This will prevent Cloud Service A from being affected if one of the hypervisors fails. The Service State Management pattern can be applied to establish a secondary cloud storage device that can be accessed by Cloud Service A whenever Cloud Storage Device A becomes inaccessible.

BThe Elastic Resource Capacity pattern can be applied to enable resources to be assigned to the virtual servers dynamically. The Hypervisor Clustering pattern can be applied to avoid jeopardizing the availability of Cloud Service A when its underlying hypervisor fails. The Multipath Resource Access pattern can be applied to establish an alternative path to Cloud Storage Device A. Cloud Service A can then be designed to access Cloud Storage Device A via the alternative path whenever access via the original path fails.

CThe Elastic Resource Capacity pattern can be applied to enable resources to be assigned to the virtual servers dynamically. The Resource Pooling pattern can be applied to allow Hypervisor A to be part of a larger hypervisor pool. The Cross-Storage Device Vertical Tiering pattern can be applied to allow Cloud Service A to access Cloud Storage Device A via different tiers.

DNone of the above.

Show Answer
